Round manways DN300-DN500

(70)

Stainless steel round manways with dimensions: DN300, DN360, DN380, DN400, DN420, DN460, DN500 and other.

From stock
Round manway W1/A (DN220-DN600)

Round manway

W1/A (DN220-DN600)

  • Non-pressure round manway
  • Cover can be opened upwards and sideways
  • Made of stainless steel AISI 304L or AISI 316L
  • Manway with aseptic cover
  • Basic versions available from stock
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN450 / DN500 / DN600
New product
Round manway W4/A (DN220-DN500)

Round manway

W4/A (DN220-DN500)

  • Round pressure manway
  • Pressure up to 8.0 bar (depending on diameter)
  • Vacuum: up to -1.0 bar
  • Aseptic closure (lid edge with handwheel tabs)
  • Made of stainless steel AISI 304L or AISI 316L
  • Manway with aseptic cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN360 / DN400 / DN450 / DN500
New product
Round manway W4/B (DN220-DN500)

Round manway

W4/B (DN220-DN500)

  • Round pressure manway
  • Pressure up to 8.0 bar (depending on diameter)
  • Vacuum: up to -1.0 bar
  • Edge closure (handwheels tightened directly to the rim of the lid)
  • Made of stainless steel AISI 304L or AISI 316L
  • Manway with aseptic cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN360 / DN400 / DN450 / DN500
Round manway W4/C (DN220-DN500)

Round manway

W4/C (DN220-DN500)

  • Round pressure manway
  • Pressure up to 10.0 bar (depending on diameter)
  • Vacuum: up to -1.0 bar
  • Aseptic closure (lid edge with handwheel tabs)
  • Made of stainless steel AISI 304L or AISI 316L
  • Manway with aseptic cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN360 / DN400 / DN450 / DN500
  • Pressure certification PED (TÜV)
Round manway W4/D (DN220-DN500)

Round manway

W4/D (DN220-DN500)

  • Round pressure manway
  • Pressure up to 10.0 bar (depending on diameter)
  • Vacuum: up to -1.0 bar
  • Edge closure (handwheels tightened directly to the rim of the lid)
  • Made of stainless steel AISI 304L or AISI 316L
  • Manway with aseptic cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN360 / DN400 / DN450 / DN500
  • Pressure certification PED (TÜV)
Round manway E117 (DN300)

Round manway

E117 (DN300)

  • Mounting in the side wall of the tank
  • Pressure up to 0.5 bar
  • Opening to the outside
  • Made of stainless steel AISI 304L or AISI 316L
Round manway E118 (DN400)

Round manway

E118 (DN400)

  • Mounting in the side wall of the tank
  • Pressure from 0.6 to 0.8 bar
  • Opening to the outside
  • Made of stainless steel AISI 304L or AISI 316L
Round manway A550 (DN300-DN600)

Round manway

A550 (DN300-DN600)

  • Mounting in the roof of the tank
  • Pressure up to 1.8 bar (depending on version)
  • Opening to the outside (cover removable)
  • Gasket mounted in the cover
  • Available diameters: DN300 / DN400 / DN500 / DN600
Round manway A560 (DN200-DN600)

Round manway

A560 (DN200-DN600)

  • Mounting in the roof of the tank
  • Opening to the outside, hinged cover
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN200 / DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A560R (DN300-DN600)

Round manway

A560R (DN300-DN600)

  • Mounting in the roof of the tank
  • Opening to the outside, hinged cover
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A570 (DN200-DN600)

Round manway

A570 (DN200-DN600)

  • Mounting in the roof of the tank
  • Pivoting cover with the possibility to move aside
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN200 / DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A570R (DN300-DN600)

Round manway

A570R (DN300-DN600)

  • Mounting in the roof of the tank
  • Pivoting cover with the possibility to move aside
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A580 (DN200-DN600)

Round manway

A580 (DN200-DN600)

  • Mounting in the roof of the tank
  • Removable cover
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN200 / DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A590 (DN300-DN600)

Round manway

A590 (DN300-DN600)

  • Mounting in the roof of the tank
  • Central lid press
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A540 (DN200-DN600)

Round manway

A540 (DN200-DN600)

  • Mounting in the roof of the tank
  • Hinged cover with handle
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN200 / DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A520 (DN200-DN600)

Round manway

A520 (DN200-DN600)

  • Mounting in the roof of the tank
  • Hinged cover with handle
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Pressure up to 3.0 bar (depending on diameter)
  • Vacuum: -0.6 bar / -0.5 bar (depending on diameter)
  • Available diameters: DN200 / DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A930 (DN150-DN600)

Round manway

A930 (DN150-DN600)

  • Mounting in the roof of the tank
  • Hinged cover that can be moved aside
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600

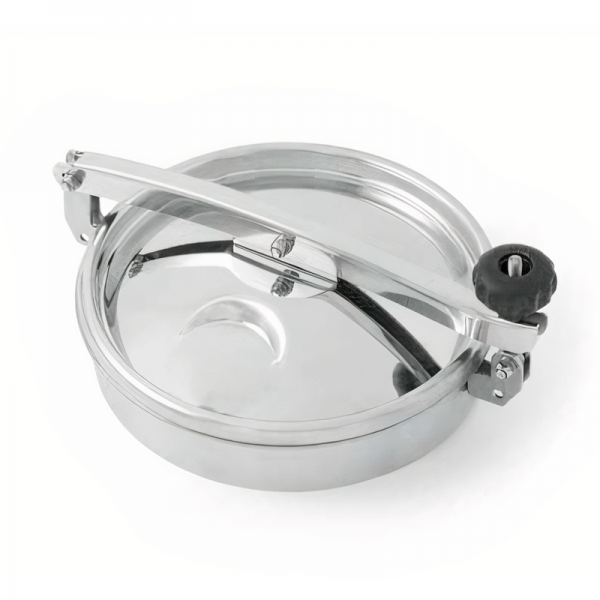

Round manway E/S (DN223-DN602)

Round manway

E/S (DN223-DN602)

  • Mounting in the roof of the tank
  • Hinged cover (opened upwards)
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN502 / DN602
Round manway A940 (DN220-DN600)

Round manway

A940 (DN220-DN600)

  • Mounting in the roof of the tank
  • Hinged cover
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600
Round manway A960 (DN150-DN600)

Round manway

A960 (DN150-DN600)

  • Mounting in the roof of the tank
  • Hinged cover with one handwheel
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600
Round manway A960R (DN220-DN600)

Round manway

A960R (DN220-DN600)

  • Mounting in the roof of the tank
  • Hinged cover with one handwheel
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600
Round manway A970 (DN150-DN600)

Round manway

A970 (DN150-DN600)

  • Mounting in the roof of the tank
  • Hinged cover that can be moved aside
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600
Round manway A970R (DN220-DN600)

Round manway

A970R (DN220-DN600)

  • Mounting in the roof of the tank
  • Hinged cover that can be moved aside
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600
Round manway A980 (DN220-DN600)

Round manway

A980 (DN220-DN600)

  • Mounting in the roof of the tank
  • Convex removable cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600

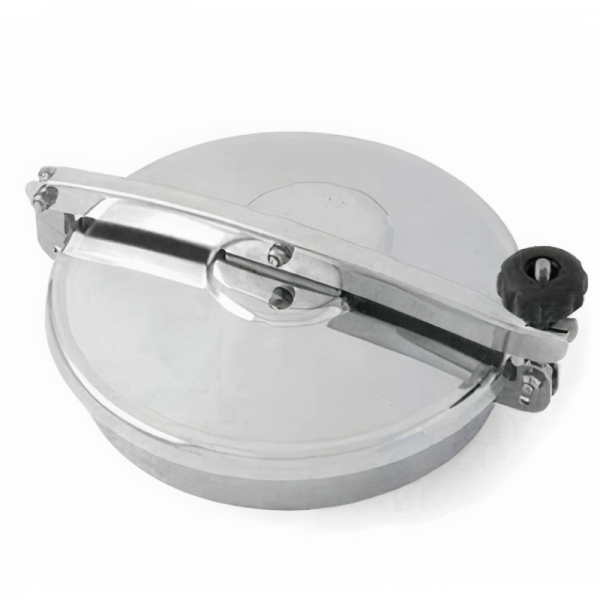

Round manway E/1S (DN223-DN602)

Round manway

E/1S (DN223-DN602)

  • Mounting in the roof of the tank
  • Hinged cover (opened upwards)
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN455 / DN502 / DN602
Round manway A1020 (DN300-DN600)

Round manway

A1020 (DN300-DN600)

  • Mounting in the roof of the tank
  • Convex cover
  • Double hinge, large handwheel
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN300 / DN400 / DN500 / DN600

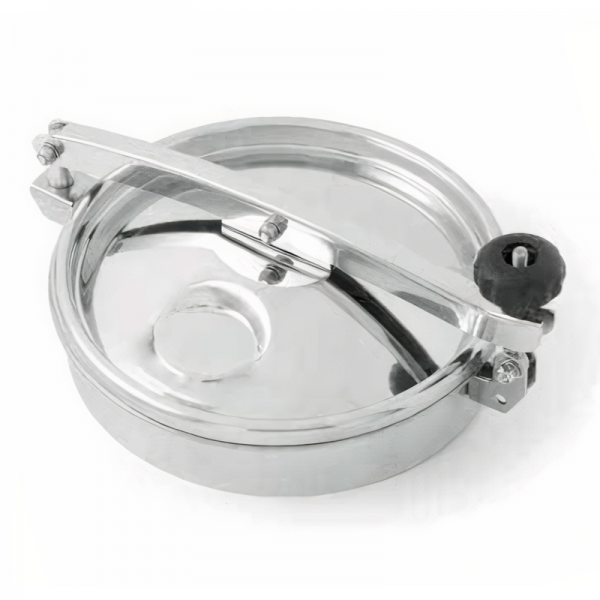

Round manway E/P (DN223-DN602)

Round manway

E/P (DN223-DN602)

  • Mounting in the roof of the tank
  • Hinged cover (opened upwards and sideways)
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN502 / DN602
Round manway A790 (DN200-DN300)

Round manway

A790 (DN200-DN300)

  • Mounting in the roof of the tank
  • Removable cover with two handwheels
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN200 / DN220 / DN300
Round manway A800 (DN300-DN420)

Round manway

A800 (DN300-DN420)

  • Mounting in the side wall of the tank
  • Cover with one handwheel
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN300 / DN380 / DN400 / DN420
Round manway A800R (DN380-DN420)

Round manway

A800R (DN380-DN420)

  • Mounting in the side wall of the tank
  • Cover with multipoint clamping
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN380 / DN400 / DN420

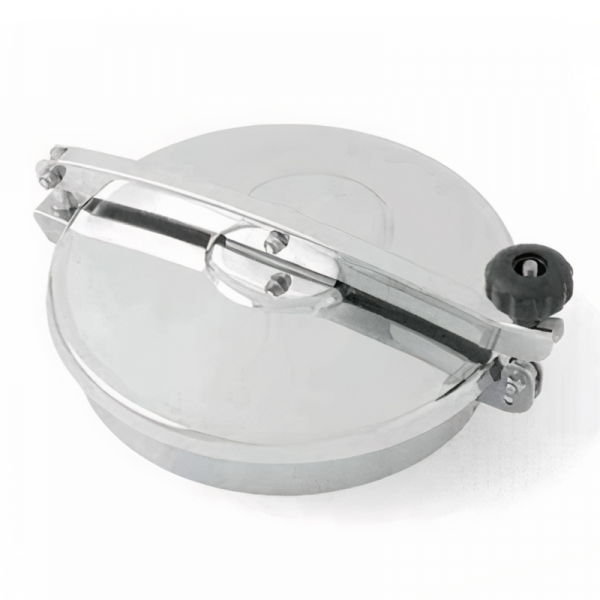

Round manway E/1P (DN223-DN602)

Round manway

E/1P (DN223-DN602)

  • Mounting in the roof of the tank
  • Hinged cover (opened upwards and sideways)
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame or in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN455 / DN502 / DN602

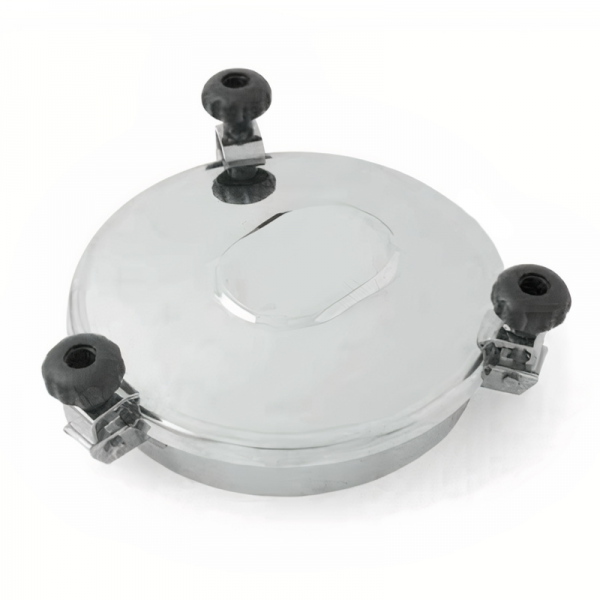

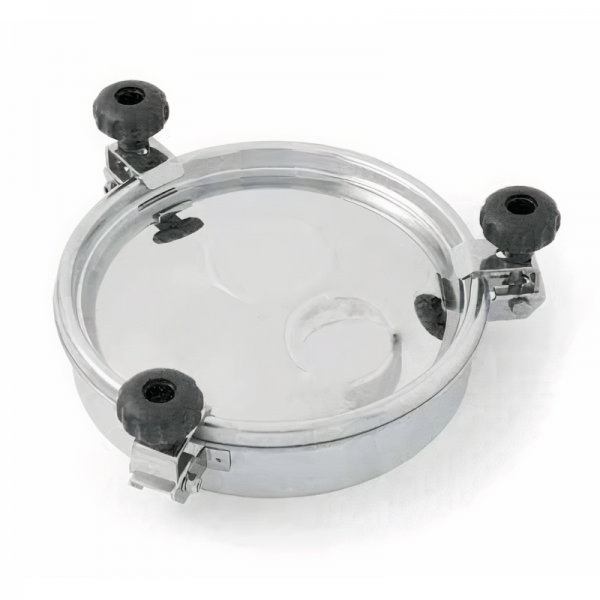

Round manway E/M (DN223-DN602)

Round manway

E/M (DN223-DN602)

  • Mounting in the roof of the tank
  • Removable cover (3 handwheels)
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN502 / DN602
Round manway E/1M (DN223-DN1540)

Round manway

E/1M (DN223-DN1540)

  • Mounting in the roof of the tank
  • Removable cover (3 handwheels)
  • Convex cover
  • Made of stainless steel AISI 304L or AISI 316L

  • Gasket mounted on the frame or in the cover

  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN455 / DN502 / DN602 / DN792 / DN890 / DN1020 / DN1210 / DN1370 / DN1540
Round manway E/1D (DN402-DN602)

Round manway

E/1D (DN402-DN602)

  • Mounting in the roof of the tank
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN402 / DN502 / DN602
Round manway E119 (DN402)

Round manway

E119 (DN402)

  • Mounting in the side wall of the tank
  • Pressure up to 0.5 bar
  • Opening to the outside
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN402
Round manway E42/1S (DN420)

Round manway

E42/1S (DN420)

  • Mounting in the roof of the tank
  • Convex cover
  • Hinged cover (opened upwards)
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN420
Round manway E40/1F (DN402)

Round manway

E40/1F (DN402)

  • Mounting in the roof of the tank
  • Convex cover
  • Hinged cover (opened upwards)
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN402
Round manway P31-240 (DN200-DN599)

Round manway

P31-240 (DN200-DN599)

  • Mounting in the roof of the tank
  • Pressure up to 0.1 bar (depending on version)
  • Convex cover
  • Manway with aseptic cover
  • Opening to the outside (upwards and sideways)
  • Gasket mounted on the frame
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN200 / DN300 / DN430 / DN499 / DN599
Round manway P22-238 (DN204-DN400)

Round manway

P22-238 (DN204-DN400)

  • Mounting in the roof of the tank
  • Pressure up to 8.0 bar (depending on version)
  • Polished hinged cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Available diameters: DN204 / DN354 / DN400
Round manway P22-233 (DN204-DN400)

Round manway

P22-233 (DN204-DN400)

  • Mounting in the roof of the tank
  • Pressure up to 12.0 bar (depending on version)
  • Polished hinged cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Available diameters: DN204 / DN250 / DN300 / DN354 / DN400
Round manway P22-443 (DN457-DN600)

Round manway

P22-443 (DN457-DN600)

  • Mounting in the roof of the tank
  • Pressure up to 12.0 bar (depending on version)
  • Polished hinged cover
  • Gasket mounted in the cover (O-ring)
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Available diameters: DN457 / DN500 / DN600
Round manway P31-200 (DN200-DN790)

Round manway

P31-200 (DN200-DN790)

  • Mounting in the roof of the tank
  • Pressure up to 0.8 bar (depending on version)
  • Convex cover
  • Opening to the outside (upwards and sideways)
  • Manway with aseptic cover
  • Gasket mounted on the frame
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN200 / DN300 / DN430 / DN500 / DN595 / DN790
Round manway P31-498 (DN430-DN595)

Round manway

P31-498 (DN430-DN595)

  • Mounting in the roof of the tank
  • Pressure up to 0.2 bar (depending on version)
  • Double-hinged cover
  • One handwheel
  • Manway with aseptic cover
  • Gasket mounted on the frame
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN430 / DN500 / DN595
Round manway BP405 (DN410)

Round manway

BP405 (DN410)

  • Mounting in the roof of the tank
  • Convex cover
  • Opening to the outside
  • Hinged cover
  • Hermetic manway with clamp closure
  • On request version with a frame height of up to 1000 mm (standard 100 mm)
  • Gasket material: EPDM, NBR
  • Available version without hinge (BP405SC)
Round manway BP420-490 (DN427-DN495)

Round manway

BP420-490 (DN427-DN495)

  • Mounting in the roof of the tank
  • Opening to the outside
  • Hinged cover
  • Hermetic manway with clamp closure
  • On request version with a frame height of up to 1000 mm (standard 100 mm)
  • Gasket material: EPDM, NBR
  • Available diameters: DN427 / DN495
Round manway B150 (DN154-DN495)

Round manway

B150 (DN154-DN495)

  • Mounting in the roof of the tank
  • Opening to the outside
  • Hinged cover
  • Hermetic manway with clamp closure
  • On request version with a frame height of up to 1000 mm (standard 100 mm)
  • Gasket material: EPDM, NBR
  • Available diameters: DN154 / DN214 / DN316 / DN386 / DN427 / DN495
Round manway B150SC (DN154-DN495)

Round manway

B150SC (DN154-DN495)

  • Mounting in the roof of the tank
  • Removable, polished cover (without hinge)
  • Hermetic manway with clamp closure
  • On request version with a frame height of up to 1000 mm (standard 100 mm)
  • Gasket material: EPDM, NBR
  • Available diameters: DN154 / DN214 / DN316 / DN386 / DN427 / DN495
Round manway B400 (DN403)

Round manway

B400 (DN403)

  • Mounting in the roof of the tank
  • Convex cover
  • Opening to the outside
  • Hinged cover
  • Hermetic manway with clamp closure
  • On request version with a frame height of up to 1000 mm (standard 100 mm)
  • Gasket material: EPDM, NBR
  • Available version without hinge (B400SC)
Round manway B300PV (DN308-DN608)

Round manway

B300PV (DN308-DN608)

  • Mounting in the roof of the tank
  • Opening to the outside
  • Hinged cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, NBR
  • Available diameters: DN308 / DN408 / DN508 / DN608
Round manway BC440TD (DN445-DN495)

Round manway

BC440TD (DN445-DN495)

  • Mounting in the roof of the tank
  • Opening to the outside
  • Hinged cover
  • Polyurethane thermal insulation
  • Gasket material: EPDM, NBR
  • Available diameters: DN445 / DN495
Round manway BV430 (DN435)

Round manway

BV430 (DN435)

  • Mounting in the roof of the tank
  • Convex cover
  • Hinged cover (opened upwards)
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted on the frame
  • Gasket material: EPDM, NBR
Round manway P32-305 (DN300-DN600)

Round manway

P32-305 (DN300-DN600)

  • Mounting in the roof of the tank
  • Pressure up to 1.2 bar (depending on version)
  • Removable cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN300 / DN400 / DN500 / DN600
Round manway P33-114 (DN204-DN354)

Round manway

P33-114 (DN204-DN354)

  • Mounting in the roof of the tank
  • Pressure up to 0.8 bar (depending on version)
  • Opening to the outside (upwards)
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN204 / DN255 / DN354
Round manway P33-200 (DN200-DN600)

Round manway

P33-200 (DN200-DN600)

  • Mounting in the roof of the tank
  • Pressure up to 0.3 bar (depending on version)
  • Opening to the outside (upwards)
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN200 / DN300 / DN400 / DN500 / DN600
Round manway P33-150 (DN145-DN600)

Round manway

P33-150 (DN145-DN600)

  • Mounting in the roof of the tank
  • Pressure up to 0.4 bar (depending on version)
  • Opening to the outside (upwards)
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN145 / DN220 / DN296 / DN393 / DN500 / DN600
Round manway P33-196 (DN200-DN600)

Round manway

P33-196 (DN200-DN600)

  • Mounting in the roof of the tank
  • Pressure up to 0.6 bar (depending on version)
  • Removable cover
  • Multi-point cover closure
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN200 / DN300 / DN400 / DN500 / DN600
Round manway P35-418 (DN432)

Round manway

P35-418 (DN432)

  • Manway for powder and bulk materials
  • Mounting in the roof of the tank
  • Pressure up to 0.3 bar
  • Removable cover
  • Multi-point cover closure
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Available diameters: DN432
Round manway P35-315 (DN384)

Round manway

P35-315 (DN384)

  • Manway for powder and bulk materials
  • Mounting in the roof of the tank
  • Pressure up to 0.3 bar
  • Hinged cover with one handwheel
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Available diameters: DN384
Round manway P42-020 (DN490)

Round manway

P42-020 (DN490)

  • Mounting in the roof of the concrete/cement tank
  • Pressure up to 0.1 bar
  • Frame suitable for concrete/cement mounting
  • Removable cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Available diameters: DN490
Round manway P42-021 (DN590)

Round manway

P42-021 (DN590)

  • Mounting in the roof of the concrete/cement tank
  • Pressure up to 0.1 bar
  • Frame suitable for concrete/cement mounting
  • Removable cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Available diameters: DN590
Round manway C93 (DN370)

Round manway

C93 (DN370)

  • Pressure up to 0.1 bar
  • Mounting in the roof of the tank
  • Removable cover with four handwheels
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR, neoprene or Viton
Round manway C79 (DN370)

Round manway

C79 (DN370)

  • Pressure up to 0.02 bar
  • Mounting in the roof of the tank
  • Hinged cover with one handwheel
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR, neoprene or Viton
Round manway C47 (DN300-DN600)

Round manway

C47 (DN300-DN600)

  • Pressure up to 2.0 bar
  • Vacuum up to -1.0 bar
  • Mounting in the roof of the tank
  • Hinged glass cover with handle and one handwheel
  • Tempered glass (up to +120°C)
  • Gasket mounted on the frame (O-ring)
  • Multi-point cover closure
  • Available diameters: DN300 / DN400 / DN500 / DN600
Round manway C41 (DN300)

Round manway

C41 (DN300)

  • Pressure up to 0.5 bar
  • Mounting in the side wall or roof of the tank
  • Removable cover with two handwheels
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR, neoprene or Viton
Round manway K-PC (DN50-DN300)

Round manway

K-PC (DN50-DN300)

  • Pressure up to 7.0 bar
  • Adapted for installation in pressure pipelines
  • Can also be installed in other pressure equipment
  • Opening to the outside
  • Manway frame: straight or with cut-out (according to indicated radius)
  • Made of stainless steel AISI 316Ti and AISI 316L
  • Gasket material: NBR or Viton
  • Available diameters: DN50 / DN100 / DN150 / DN200 / DN300
Round manway XG400 (DN400-DN500)

Round manway

XG400 (DN400-DN500)

  • Non-pressure manway
  • Mounting in the roof of the tank
  • Hinged glass cover with handle and one handwheel
  • Tempered glass (up to +120°C)
  • Made of stainless steel AISI 316L
  • Gasket material: silicone
  • Available diameters: DN400 / DN450 / DN500
  • Optional: laser-cut safety grid
Round manway X10311 (DN500)

Round manway

X10311 (DN500)

  • Non-pressure round manway
  • Suitable for use in industrial applications
  • Opening to the outside
  • Made of mild steel S235JR
  • Gasket material: EPDM, NBR, silicone or Viton
  • Available diameters: DN500
Round manway X2311VAL (DN150-DN500)

Round manway

X2311VAL (DN150-DN500)

  • Non-pressure round manway
  • Opening to the outside
  • Mounting in the roof of the tank
  • Made of stainless steel AISI 304 or AISI 316
  • Polished cover, passivated frame
  • Gasket material: EPDM, NBR, silicone or Viton
  • Available diameters: DN150 / DN200 / DN250 / DN300 / DN420 / DN500
Round manway X1312MT (DN100-DN350)

Round manway

X1312MT (DN100-DN350)

  • Non-pressure round manway
  • Opening to the outside
  • Mounting in the roof of the tank
  • Made of mild steel S235JR or stainless steel AISI 316L
  • For AISI 316L version, passivated or polished option available
  • Gasket material: EPDM, NBR, silicone or Viton
  • Available diameters: DN100 / DN150 / DN200 / DN250 / DN350
Round manway X10324MT (DN500-DN600)

Round manway

X10324MT (DN500-DN600)

  • Pressure round manway
  • Opening to the outside
  • Mounting in the roof of the tank
  • Made of mild steel S235JR or stainless steel AISI 316L
  • For AISI 316L version, passivated or polished option available
  • Gasket material: EPDM, NBR, silicone or Viton
  • Available diameters: DN500 / DN600

Features of manways with diameters from DN300 to DN500

Round manways with dimensions in the DN300-DN500 range are among the most popular groups of manholes used in various industries. In this size range there are both non-pressure manways and pressure manways compliant with the PED directive. Round manways DN300-DN500 are manufactured from stainless steels in grades AISI 304/304L, as well as in grades AISI 316/316L.



Particularly worth mentioning in the group of DN300-DN500 manways are those with a minimum size of DN400. This is because they are commonly used as an inspection element for various types of tanks and industrial equipment (diameter of 400 mm and above ensures that a technician of average body build can get through and carry out inspection or repairs inside the tank).



As standard, DN300-DN500 circular manways are equipped with a handwheel closure. However, there are also clamp manways in this group, which allow the manhole cover to be opened and closed with a special coupling.

We use cookies

We use cookies to facilitate the use of our websites, for statistical and advertising purposes. If you do not block these files, you agree to their use and saving them in your device's memory. Remember that you can change your browser settings yourself to block the saving of cookies. For more information, see our Privacy Policy.
contact us
