Round manway
A560R (DN300-DN600)

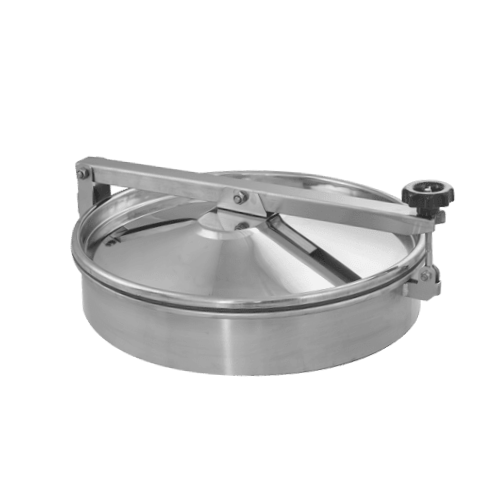

Round manway series A560R
Round manway series A560R is made of stainless steel AISI 304 or AISI 316L. As standard, the manway is equipped with plastic handwheels (optional INOX).
This type of manway is mounted in the top of the stainless steel tank. The hinged cover of the A560R series manway opens upwards. A large range of mounting frame heights is available, so the manway can be easily built into thermoinsulated tanks.
Manways series A560R with diameters DN300/500/600 have a smooth surface. DN380/400/420 diameters are equipped with embossed covers.
The use of stainless steel round manway series A560R
The main area of application is:
- food industry,
- dairy,
- beverage and alcohol production.
It is also used with good results in fruit and vegetable processing, cosmetics, biotechnology and chemical industries.
In general, the manway can be installed wherever the application is allowed by the parameters of the materials used in its construction.
| Model | DN [mm] | Di [mm] | HxSP1 [mm] | HT [mm]* | SP2 [mm] | MAX [bar]* |
Weight [kg] |
|---|---|---|---|---|---|---|---|
| A560R | 300 | 295 |
60x2** 100x2 150x2 200x2 250x2 |
140 | 1.0 | 0.06 | 3.5 |
| A561R | 380 | 375 | 145 | 1.0 | 0.05 | 4.6 | |
| A562R | 400 | 395 | 150 | 1.2 | 0.05 | 5.5 | |
| A563R | 420 | 415 | 150 | 1.2 | 0.05 | 6.0 | |
| A564R | 500 | 500 | 155 | 1.2 | 0.05 | 7.0 | |
| A565R | 600 | 600 | 160 | 1.5 | 0.04 | 9.5 |
*For the standard version (HxSP1 = 60x2 mm).
**Standard version.

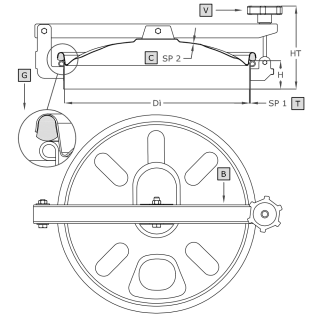

| Symbol | Element |
|---|---|
| V |
handwheel |
| C | cover |
| G | gasket |
| T | frame |
| B | arm |
Technical parameters
| Product series | Series A |
|---|---|
| Shape | Round manways |
| Type | Non-pressure manway |
| Frame height (in mm) | 60-250 mm |
| Frame wall thickness (in mm) | 2.0 mm |
| Opening type | Outward |
| Size | DN300 - DN500, DN501 - DN700 |
| Mounting method | in the tank roof (top manways) |
| Pressure | below 0.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Neoprene, Silicone, Viton |
| Handwheel material | Plastic, INOX |
