Round manway
E118 (DN400)

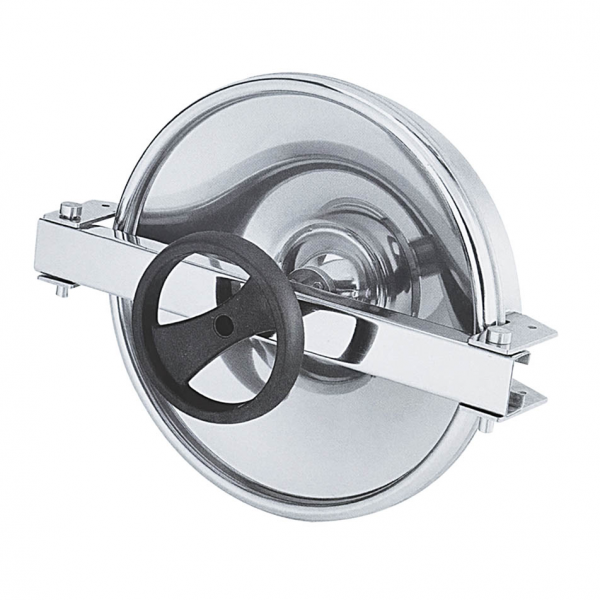

Stainless steel round manway E118
Stainless round manway E118 is installed in the side wall or roof of stainless steel tanks. This model is used primarily in the food and dairy industry, as well as in the production of beverages and alcohol, and in the processing of vegetables and fruits. Another areas where this type of manway is used with good results are the cosmetics and biotechnology industries. In general, the manway is used successfully wherever the parameters of the materials used in its construction allow the application.

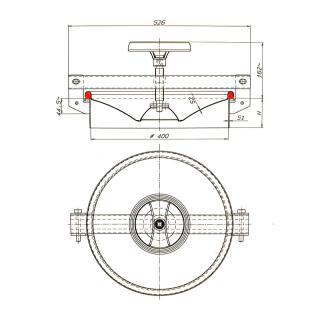

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E118 | 60 | 2.5 | 1.5 | 0.6 |
| E118/A | 80 | 2.5 | 1.5 | 0.6 |
| E118/B | 100 | 2.5 | 1.5 | 0.6 |
| E118/X | 80 | 6 | 1.5 | 0.8 |
Technical parameters
| Product series | Series E |
|---|---|
| Shape | Round manways |
| Type | Non-pressure manway |
| Frame height (in mm) | 60-100 mm |
| Frame wall thickness (in mm) | 2.5-6.0 mm |
| Opening type | Outward |
| Industry | Chemical, Dairy, Food production, Winemaking |
| Size | DN300 - DN500 |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
| Handwheel material | Plastic, INOX |
