Round manway
C41 (DN300)
Stainless steel round manway C41 (DN300)
Właz okrągły nierdzewny C41 DN300 osadza się w poszyciu bocznym lub dachu zbiornika nierdzewnego. Jego zdejmowana pokrywa wraz z uszczelką dociskana jest do kołnierza za pomocą dwóch zacisków. Co więcej, płaski obszar na wypukłości pokrywy umożliwia zamontowanie dodatkowego osprzętu.

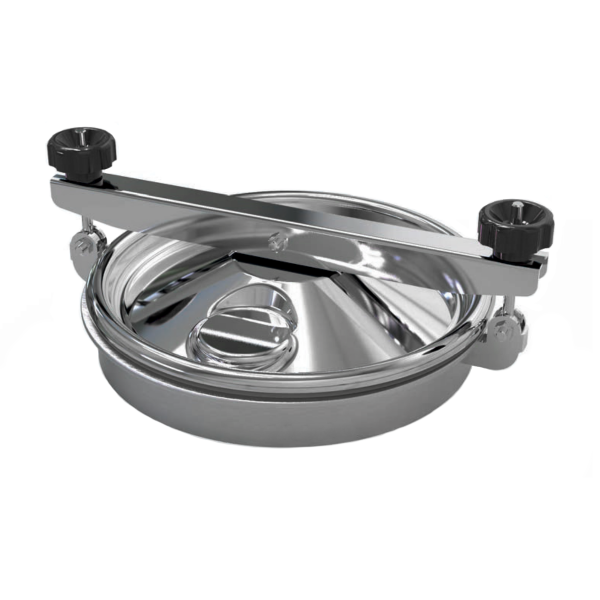

Round stainless steel manway C41 DN300 is installed in the side wall or roof of the stainless steel tank. Its removable cover with gasket is tightened to the frame with two handwheels. What's more, the flat area on the cover allows for the installation of additional accessories (for example: sight glass or breathe valve).
Model C41 is produced as standard with mounting frame (flange) of 60 mm height (see table). Optionally, it is possible to equip the manway with a higher frame in order to install it in a stainless steel tank covered with thermal insulation. Round manway C41 is in general installed in non-pressure stainless steel tanks designed for storing various types of liquid products, but it can also be successfully used in a variety of process equipment.
As standard, the C41 manway is manufactured from AISI 304 grade stainless steel, and optionally from AISI 316L. A wide range of gasket materials allows the manway to be used in contact with a variety of working media (liquids).
The use of stainless steel round manway C41 (DN300)
The main area of usage is:
- food industry,
- beverage and alcohol production,
- chemical and biotechnology industries,
- stainless steel tanks of various sizes.
With good results, the manway is successfully installed wherever the parameters of the materials used for its construction allow its application.
| Model | A [mm] | B [mm] | C [mm] | D [mm] | DE [mm] | MAX [bar] |
|---|---|---|---|---|---|---|
| C41 | 60 | 1.5 | 1.2 |
300 |
303 | 0.5 |

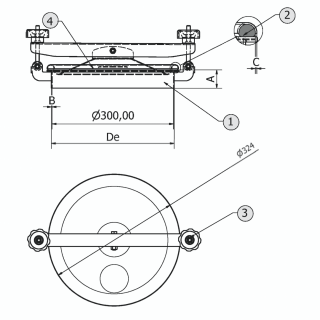

| Symbol | Element |
|---|---|
| 1 | frame |
| 2 | gasket |
| 3 | handwheel |
| 4 | cover |
Technical parameters
| Product series | Series C |
|---|---|
| Shape | Round manways |
| Type | Non-pressure manway |
| Frame height (in mm) | 60 mm |
| Frame wall thickness (in mm) | 1.5 mm |
| Opening type | Outward |
| Size | DN300 - DN500 |
| Mounting method | in the tank roof (top manways), in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Neoprene, Silicone, Viton |
| Handwheel material | Plastic, INOX |
