Round manway
E117 (DN300)

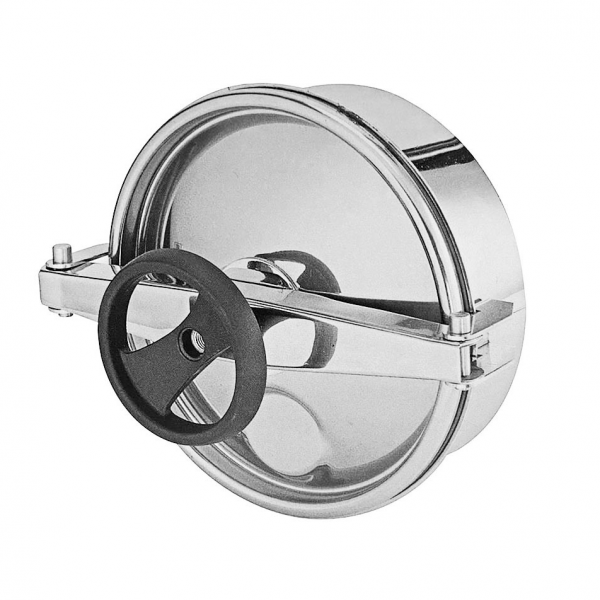

Stainless steel round manway E117
The E117 stainless round manway is primarily installed in the side wall of tanks. The wide range of available mounting frame heights (see table) makes it easy to install the manway also in stainless steel thermoinsulated tanks.
The use of round side manway E117
This model is typically used in:
- winemaking,
- food production,
- dairy industry,
- beverage and alcohol production.
Of course, it is also used in other industries. The most common ones are: the agro-food processing industry, fruit and vegetable processing, sugar industry and many others. When planning the use of the E117 round manway in a specific working environment, it is essential to consider the properties of the materials and components used in its construction.

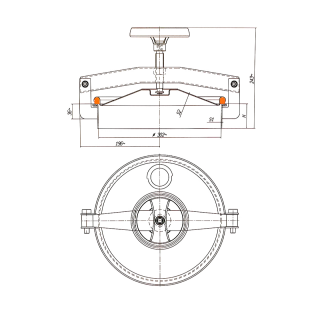

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E117 | 60 | 2 | 1.5 | 0.5 |
| E117/A | 90 | 2 | 1.5 | 0.5 |
| E117/B | 150 | 2 | 1.5 | 0.5 |
| E117/C | 200 | 2 | 1.5 | 0.5 |
| E117/D | 250 | 2 | 1.5 | 0.5 |
| E117/E | 300 | 2 | 1.5 | 0.5 |
| E117/F | 350 | 2 | 1.5 | 0.5 |
| E117/G | 400 | 2 | 1.5 | 0.5 |
Technical parameters
| Product series | Series E |
|---|---|
| Shape | Round manways |
| Type | Non-pressure manway |
| Frame height (in mm) | 60-400 mm |
| Frame wall thickness (in mm) | 2.0 mm |
| Opening type | Outward |
| Industry | Chemical, Dairy, Food production, Winemaking |
| Size | DN300 - DN500 |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
| Handwheel material | Plastic, INOX |
