Round manway

A970R (DN220-DN600)

choose variant

  • Mounting in the roof of the tank
  • Hinged cover that can be moved aside
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600

Round manway series A970R

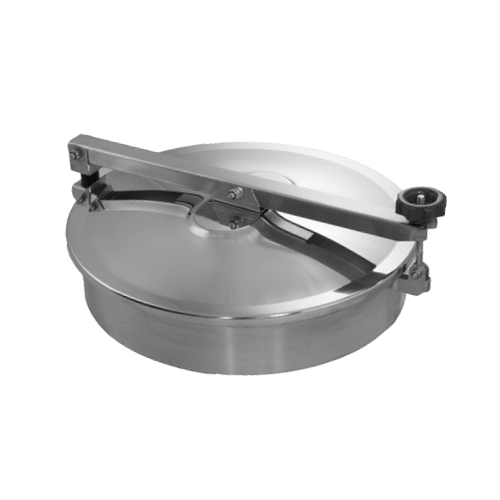

Round manway series A970R is a solid construction, which is made of AISI 304 or AISI 316L stainless steel. As standard, the manway is equipped with a plastic handwheel (optional INOX and aluminum handwheels are available).


Manways of this type are manufactured in two versions - with a gasket on the frame (A970R) or with a gasket in the cover (A970RB). The A970R series manway is installed in the roof of a stainless steel tank. The convex, hinged cover of the A970R series manway makes it easier to drain water when cleaning equipment and tanks. Thanks to its movable fixing, the cover can be pushed aside after opening.


A large range of mounting frame heights is available, so the manway can be easily built into stainless steel insulated tanks.

The use of stainless steel round manway series A970R

The main area of application is:

  • food industry,
  • dairy,
  • beverage and alcohol production.

It is also used with good effect in industrial non-pressure equipment not directly related to food production, such as in the chemical industry and power generation.



In general, the manway can be installed wherever the parameters of the materials used in its construction allow the application.

Model DN [mm] Di [mm] HxSP1 [mm] HT [mm]* SP2 [mm] MAX [bar]*

Weight

[kg]
A969R 220 220

60x2**

100x2

150x2

200x2

250x2

125 1.5 0.05 4.0
A970R 300 295 140 1.5 0.05 5.0
A972R 400 395 150 1.5 0.05 6.0
A974R 500 500 155 1.5 0.05 7.0
A975R 600 600 160 1.5 0.05 10.0
A969RB 220 220 125 1.5 0.05 4.0
A970RB 300 295 140 1.5 0.05 5.5
A972RB 400 395 150 1.5 0.05 7.0
A974RB 500 500 155 1.5 0.05 8.5
A975RB 600 600 160 1.5 0.05 11.0

*For the standard version (HxSP1 = 60x2 mm).

**Standard version.

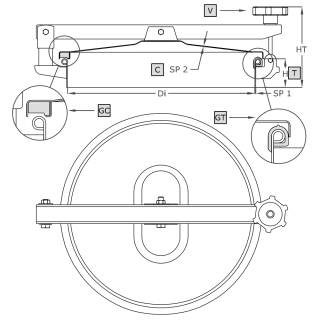

Symbol Element
V handwheel
C cover
T frame
B arm
GC

gasket in the cover

GT

gasket on the frame



Technical parameters

Product seriesSeries A
ShapeRound manways
TypeNon-pressure manway
Frame height (in mm)60-250 mm
Frame wall thickness (in mm)2.0 mm
Opening typeOutward
Sizebelow DN300, DN300 - DN500, DN501 - DN700
Mounting methodin the tank roof (top manways)
Pressurebelow 0.5 bar
Vacuum pressurenot applicable
PED certificateno
Steel gradeAISI 304/304L, AISI 316/316L
Gasket materialEPDM, NBR, Neoprene, Silicone, Viton
Handwheel materialPlastic, INOX
