Round manway
E/1D (DN402-DN602)

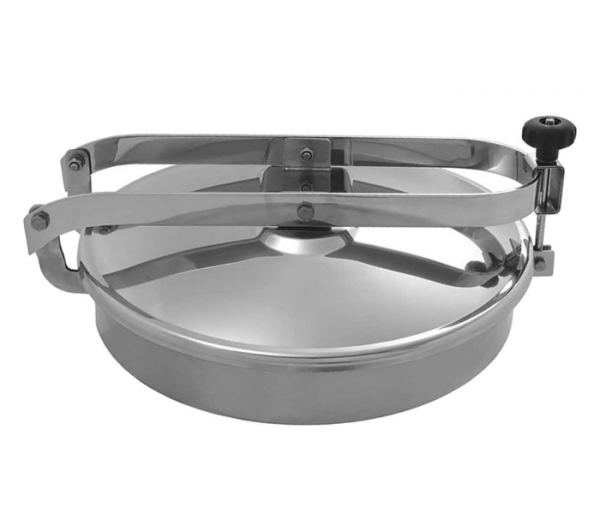

Stainless steel round manway E/1D
Stainless steel round manways of E/1D series are designed for installation in the upper part (roof) of stainless steel tanks. They are suitable for tanks intended for storing various liquid products in non-pressurized conditions, as well as for other process equipment.
The series includes versions in dimensions:
- DN402 (E40/1D),
- DN502 (E50/1D),
- DN602 (E60/1D).
The hinged cover opens outwards. Moreover, its convex design makes it easy to clean and prevents dirt and water from settling. The range of available mounting frame heights (see tab: dimensions) makes the manway suitable for installation in stainless steel insulated tanks.
A characteristic feature of the manway is the cover installed on two hinges, which guarantee the stability of opening and closing of the manway.
Stainless steel round manway series E/1D - application
Round manways E/1D are installed in stainless steel tanks for storing various types of products, as well as in many other devices. The main areas of application for this manway model are:
- food and dairy industry,
- beverage and alcohol production industry,
- vegetable and fruit processing.
It is also successfully used in cosmetics, biotechnology, chemical and similar industries.

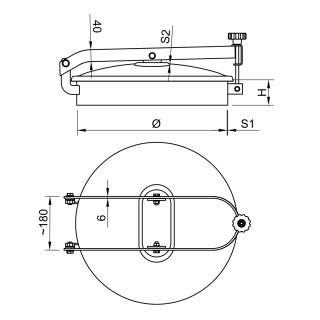

| Model | Ø [mm] | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|---|
| E40/1D | 402 | 90 150 200 |
2 | 1.5 | 0.05 |
| E50/1D | 502 | 2 | 1.5 | 0.05 | |
| E60/1D | 602 | 2 | 1.5 | 0.05 |
Technical parameters
| Product series | Series E |
|---|---|
| Shape | Round manways |
| Type | Non-pressure manway |
| Frame height (in mm) | 90-200 mm |
| Frame wall thickness (in mm) | 2.0 mm |
| Opening type | Outward |
| Industry | Brewing, Chemical, Dairy, Food production, Winemaking |
| Size | DN300 - DN500, DN501 - DN700 |
| Mounting method | in the tank roof (top manways) |
| Pressure | below 0.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Silicone, Viton |
| Handwheel material | Plastic, INOX |
