Round manways DN501-DN700

(45)

Stainless steel round manways with dimensions DN600, DN700 and other.

From stock
Round manway W1/A (DN220-DN600)

Round manway

W1/A (DN220-DN600)

  • Non-pressure round manway
  • Cover can be opened upwards and sideways
  • Made of stainless steel AISI 304L or AISI 316L
  • Manway with aseptic cover
  • Basic versions available from stock
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN450 / DN500 / DN600
Round manway A550 (DN300-DN600)

Round manway

A550 (DN300-DN600)

  • Mounting in the roof of the tank
  • Pressure up to 1.8 bar (depending on version)
  • Opening to the outside (cover removable)
  • Gasket mounted in the cover
  • Available diameters: DN300 / DN400 / DN500 / DN600
Round manway A560 (DN200-DN600)

Round manway

A560 (DN200-DN600)

  • Mounting in the roof of the tank
  • Opening to the outside, hinged cover
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN200 / DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A560R (DN300-DN600)

Round manway

A560R (DN300-DN600)

  • Mounting in the roof of the tank
  • Opening to the outside, hinged cover
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A570 (DN200-DN600)

Round manway

A570 (DN200-DN600)

  • Mounting in the roof of the tank
  • Pivoting cover with the possibility to move aside
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN200 / DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A570R (DN300-DN600)

Round manway

A570R (DN300-DN600)

  • Mounting in the roof of the tank
  • Pivoting cover with the possibility to move aside
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A580 (DN200-DN600)

Round manway

A580 (DN200-DN600)

  • Mounting in the roof of the tank
  • Removable cover
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN200 / DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A590 (DN300-DN600)

Round manway

A590 (DN300-DN600)

  • Mounting in the roof of the tank
  • Central lid press
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A540 (DN200-DN600)

Round manway

A540 (DN200-DN600)

  • Mounting in the roof of the tank
  • Hinged cover with handle
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN200 / DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A520 (DN200-DN600)

Round manway

A520 (DN200-DN600)

  • Mounting in the roof of the tank
  • Hinged cover with handle
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Pressure up to 3.0 bar (depending on diameter)
  • Vacuum: -0.6 bar / -0.5 bar (depending on diameter)
  • Available diameters: DN200 / DN300 / DN380 / DN400 / DN420 / DN500 / DN600
Round manway A930 (DN150-DN600)

Round manway

A930 (DN150-DN600)

  • Mounting in the roof of the tank
  • Hinged cover that can be moved aside
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600

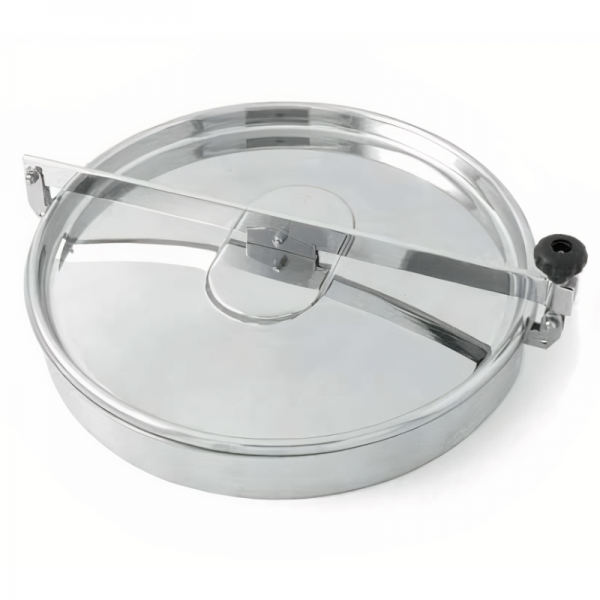

Round manway E/S (DN223-DN602)

Round manway

E/S (DN223-DN602)

  • Mounting in the roof of the tank
  • Hinged cover (opened upwards)
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN502 / DN602
Round manway A940 (DN220-DN600)

Round manway

A940 (DN220-DN600)

  • Mounting in the roof of the tank
  • Hinged cover
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600
Round manway A960 (DN150-DN600)

Round manway

A960 (DN150-DN600)

  • Mounting in the roof of the tank
  • Hinged cover with one handwheel
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600
Round manway A960R (DN220-DN600)

Round manway

A960R (DN220-DN600)

  • Mounting in the roof of the tank
  • Hinged cover with one handwheel
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600
Round manway A970 (DN150-DN600)

Round manway

A970 (DN150-DN600)

  • Mounting in the roof of the tank
  • Hinged cover that can be moved aside
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600
Round manway A970R (DN220-DN600)

Round manway

A970R (DN220-DN600)

  • Mounting in the roof of the tank
  • Hinged cover that can be moved aside
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600
Round manway A980 (DN220-DN600)

Round manway

A980 (DN220-DN600)

  • Mounting in the roof of the tank
  • Convex removable cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN220 / DN300 / DN400 / DN500 / DN600

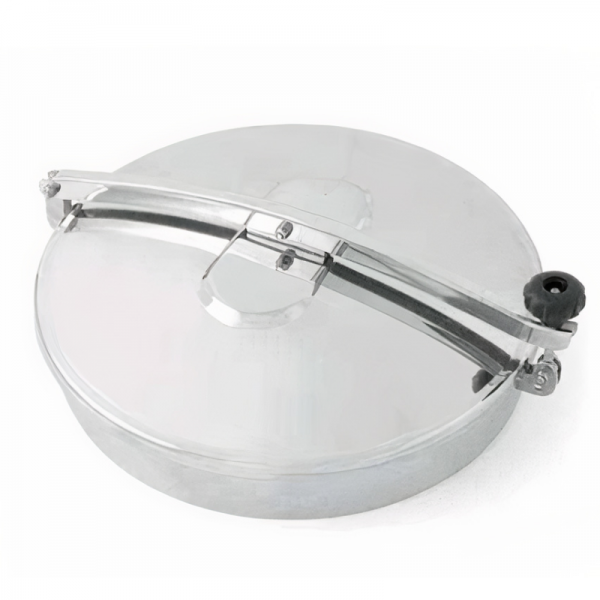

Round manway E/1S (DN223-DN602)

Round manway

E/1S (DN223-DN602)

  • Mounting in the roof of the tank
  • Hinged cover (opened upwards)
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame or in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN455 / DN502 / DN602
Round manway A1020 (DN300-DN600)

Round manway

A1020 (DN300-DN600)

  • Mounting in the roof of the tank
  • Convex cover
  • Double hinge, large handwheel
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN300 / DN400 / DN500 / DN600

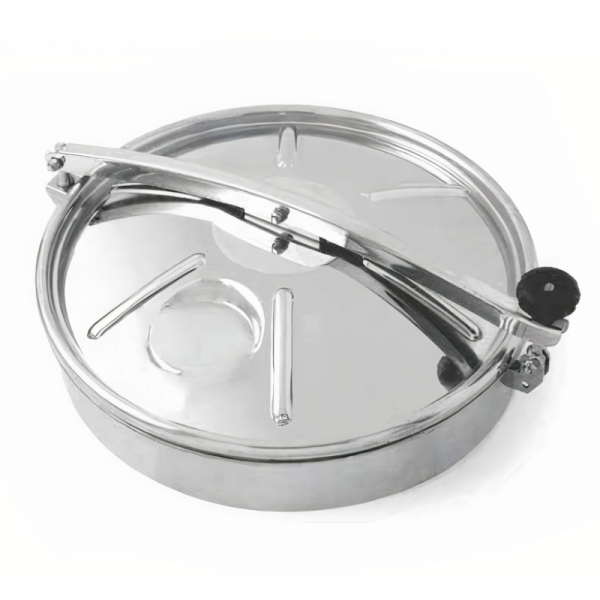

Round manway E/P (DN223-DN602)

Round manway

E/P (DN223-DN602)

  • Mounting in the roof of the tank
  • Hinged cover (opened upwards and sideways)
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN502 / DN602

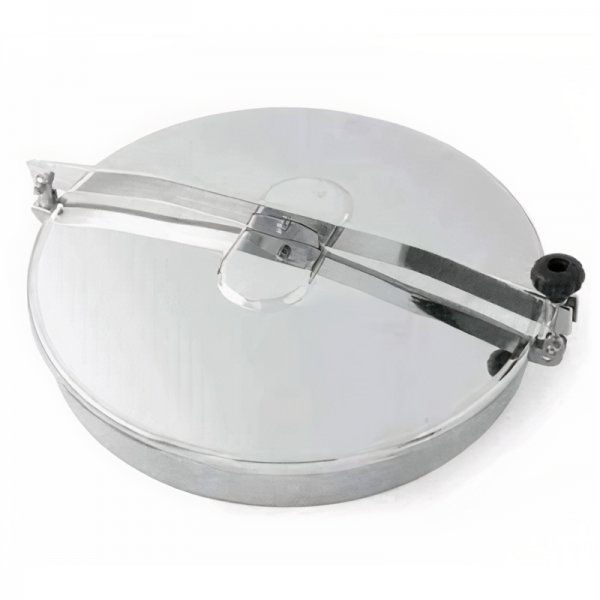

Round manway E/1P (DN223-DN602)

Round manway

E/1P (DN223-DN602)

  • Mounting in the roof of the tank
  • Hinged cover (opened upwards and sideways)
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted on the frame or in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN455 / DN502 / DN602

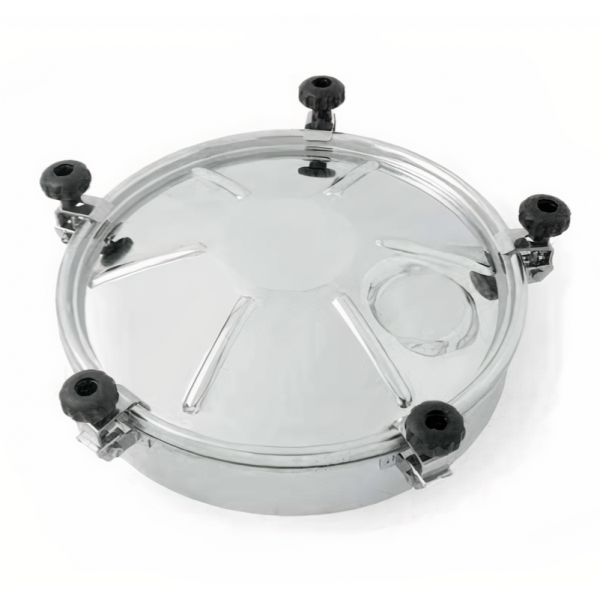

Round manway E/M (DN223-DN602)

Round manway

E/M (DN223-DN602)

  • Mounting in the roof of the tank
  • Removable cover (5 handwheels)
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN502 / DN602

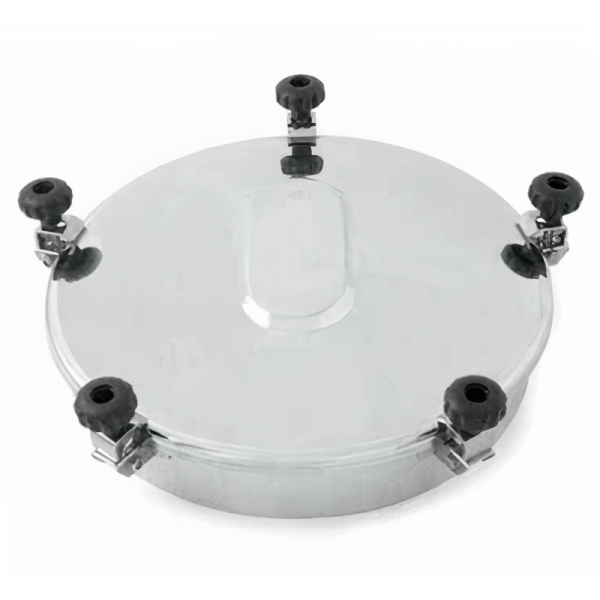

Round manway E/1M (DN223-DN1540)

Round manway

E/1M (DN223-DN1540)

  • Mounting in the roof of the tank
  • Removable cover (5 handwheels)
  • Convex cover
  • Made of stainless steel AISI 304L or AISI 316L

  • Gasket mounted on the frame or in the cover

  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN455 / DN502 / DN602 / DN792 / DN890 / DN1020 / DN1210 / DN1370 / DN1540
Round manway E/1D (DN402-DN602)

Round manway

E/1D (DN402-DN602)

  • Mounting in the roof of the tank
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN402 / DN502 / DN602
Round manway E/1B (DN502-DN792)

Round manway

E/1B (DN502-DN792)

  • Mounting in the roof of the tank
  • Hinged cover (opened upwards and sideways)
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN502 / DN602 / DN792
Round manway E/1NZ (DN502)

Round manway

E/1NZ (DN502)

  • Mounting in the roof of the tank
  • Convex cover
  • Hinged cover (opened upwards)
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted on the frame
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN502
Round manway E51 (DN502)

Round manway

E51 (DN502)

  • Mounting in the roof of the tank
  • Hinged cover (opened upwards) with two support points
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted in the cover
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN502
Round manway P31-240 (DN200-DN599)

Round manway

P31-240 (DN200-DN599)

  • Mounting in the roof of the tank
  • Pressure up to 0.1 bar (depending on version)
  • Convex cover
  • Manway with aseptic cover
  • Opening to the outside (upwards and sideways)
  • Gasket mounted on the frame
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN200 / DN300 / DN430 / DN499 / DN599
Round manway P12-510 (DN504-DN800)

Round manway

P12-510 (DN504-DN800)

  • Mounting in the side wall of the tank
  • Pressure up to 1.0 bar
  • Opening to the inside
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Surface finish options: standard / polishing / electropolishing
  • Available diameters: DN504 / DN604 / DN800
Round manway P22-265 (DN504-DN604)

Round manway

P22-265 (DN504-DN604)

  • Mounting in the roof of the tank
  • Pressure up to 2.0 bar (depending on version)
  • Polished hinged cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Available diameters: DN504 / DN604
Round manway P22-265ATR (DN504)

Round manway

P22-265ATR (DN504)

  • Mounting in the roof of the tank
  • Pressure up to 2.0 bar
  • Polished hinged cover Anti-Retention
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
Round manway P22-443 (DN457-DN600)

Round manway

P22-443 (DN457-DN600)

  • Mounting in the roof of the tank
  • Pressure up to 12.0 bar (depending on version)
  • Polished hinged cover
  • Gasket mounted in the cover (O-ring)
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Available diameters: DN457 / DN500 / DN600
Round manway P31-200 (DN200-DN790)

Round manway

P31-200 (DN200-DN790)

  • Mounting in the roof of the tank
  • Pressure up to 0.8 bar (depending on version)
  • Convex cover
  • Opening to the outside (upwards and sideways)
  • Manway with aseptic cover
  • Gasket mounted on the frame
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN200 / DN300 / DN430 / DN500 / DN595 / DN790
Round manway P31-498 (DN430-DN595)

Round manway

P31-498 (DN430-DN595)

  • Mounting in the roof of the tank
  • Pressure up to 0.2 bar (depending on version)
  • Double-hinged cover
  • One handwheel
  • Manway with aseptic cover
  • Gasket mounted on the frame
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN430 / DN500 / DN595
Round manway B600 (DN606-DN1406)

Round manway

B600 (DN606-DN1406)

  • Mounting in the roof of the tank
  • Opening to the outside (upwards and sideways)
  • Hermetic manway with clamp closure
  • Hinged cover
  • Optional: internal safety grid / two-way relief valve / manway with smaller diameter welded to cover
  • On request version with a frame height of up to 1000 mm (standard 100 mm)
  • Gasket material: EPDM, NBR
  • Available diameters: DN606 / DN706 / DN806 / DN906 / DN1006 / DN1106 / DN1206 / DN1306 / DN1406
Round manway B300PV (DN308-DN608)

Round manway

B300PV (DN308-DN608)

  • Mounting in the roof of the tank
  • Opening to the outside
  • Hinged cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, NBR
  • Available diameters: DN308 / DN408 / DN508 / DN608
Round manway P32-305 (DN300-DN600)

Round manway

P32-305 (DN300-DN600)

  • Mounting in the roof of the tank
  • Pressure up to 1.2 bar (depending on version)
  • Removable cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN300 / DN400 / DN500 / DN600
Round manway P33-212 (DN504-DN604)

Round manway

P33-212 (DN504-DN604)

  • Mounting in the roof of the tank
  • Pressure up to 0.1 bar
  • Opening to the outside
  • Double-hinged cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN504 / DN604
Round manway P33-200 (DN200-DN600)

Round manway

P33-200 (DN200-DN600)

  • Mounting in the roof of the tank
  • Pressure up to 0.3 bar (depending on version)
  • Opening to the outside (upwards)
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN200 / DN300 / DN400 / DN500 / DN600
Round manway P33-150 (DN145-DN600)

Round manway

P33-150 (DN145-DN600)

  • Mounting in the roof of the tank
  • Pressure up to 0.4 bar (depending on version)
  • Opening to the outside (upwards)
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN145 / DN220 / DN296 / DN393 / DN500 / DN600
Round manway P33-196 (DN200-DN600)

Round manway

P33-196 (DN200-DN600)

  • Mounting in the roof of the tank
  • Pressure up to 0.6 bar (depending on version)
  • Removable cover
  • Multi-point cover closure
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN200 / DN300 / DN400 / DN500 / DN600
Round manway C47 (DN300-DN600)

Round manway

C47 (DN300-DN600)

  • Pressure up to 2.0 bar
  • Vacuum up to -1.0 bar
  • Mounting in the roof of the tank
  • Hinged glass cover with handle and one handwheel
  • Tempered glass (up to +120°C)
  • Gasket mounted on the frame (O-ring)
  • Multi-point cover closure
  • Available diameters: DN300 / DN400 / DN500 / DN600
Round manway K-MC (DN600-DN800)

Round manway

K-MC (DN600-DN800)

  • Pressure up to 6.0 bar (depending on version)
  • Mounting in the side wall of the tank
  • Opening to the inside
  • Made of stainless steel AISI 316Ti (external parts: AISI 304/AISI 321, aluminium)
  • Gasket material: NBR or Viton
  • Available diameters: DN600 / DN800
Round manway X10324MT (DN500-DN600)

Round manway

X10324MT (DN500-DN600)

  • Pressure round manway
  • Opening to the outside
  • Mounting in the roof of the tank
  • Made of mild steel S235JR or stainless steel AISI 316L
  • For AISI 316L version, passivated or polished option available
  • Gasket material: EPDM, NBR, silicone or Viton
  • Available diameters: DN500 / DN600

Round manways DN501-DN700 - highlights

The DN501-DN700 manway group primarily includes models of the popular and widely used DN600 and DN700 sizes. They provide relatively wide access to the chamber of the tank or industrial equipment in which they are installed. These manways are manufactured from AISI 304/304L and AISI 316/316L steel.



Among the manways in the DN501-DN700 size range are both non-pressure manholes and those suitable for installation in pressure equipment. In the case of the second group (circular pressure manways), it is possible to certify manways in accordance with the PED directive.



As standard, closing and opening of round manways DN501-DN700 is done by handwheels (the number of handwheels depends on the model). However, models with clamp closure are also available, in which the connection of the cover and manway frame is carried out with a special band around the edge of the structure.

We use cookies

We use cookies to facilitate the use of our websites, for statistical and advertising purposes. If you do not block these files, you agree to their use and saving them in your device's memory. Remember that you can change your browser settings yourself to block the saving of cookies. For more information, see our Privacy Policy.
contact us
