E/1B (DN502-DN792)

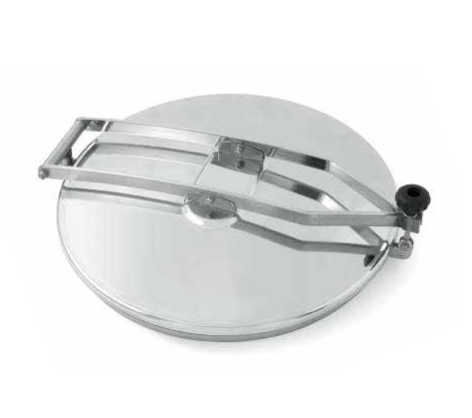

Stainless steel round manways of the E/1B series are designed for installation in the roof of a stainless steel tank. A characteristic feature of the E/1B series manways is their cover, which allows it to be opened upwards, as well as pushed aside. In addition, the cover is placed on a double arm, thus ensuring its stability during opening.

Another important advantage of the covers in the E/1B series round manways is their convex design, which prevents water and dirt from settling. E1/B manways are manufactured in diameters: DN502, DN602 and DN792.

The large range of available mounting frame heights (see table) makes it easy to install manways from this series in stainless insulated tanks. Round manways E/1B are installed in stainless steel tanks designed for storing various types of liquid products, as well as in many other devices.

The main areas of application for these types of manways are: food, dairy, beverage and liquor industries. They are also used with good results:

• in vegetable and fruit processing,
• in the cosmetics industry,
• in the biotechnology and chemical industries.

Manways of the E/1B series are an excellent piece of equipment for non-pressurized devices requiring an inspection cover in their design. In general, manways of this type can be installed wherever the parameters of the materials used in its construction allow the application.
