Rectangular manways 501-700 mm

(26)

Stainless steel rectangular manways with side lengths of max 501-700 mm. Vertical and horizontal manway structures made of steel AISI 304/304L and AISI 316/316L.

From stock
Rectangular manway W2/A (530x406)

Rectangular manway

W2/A (530x406)

  • Vertical rectangular manway
  • Pressure up to 1.1 bar (depending on version)
  • Hinged cover with two handwheels
  • Mounting in the roof or in the side wall of the tank
  • Made of stainless steel AISI 304L or AISI 316L
  • Basic versions available from stock
  • Gasket material: EPDM, silicone, NBR or Viton
Rectangular manway E116 (406x530)

Rectangular manway

E116 (406x530)

  • Horizontal manway

  • Opening to the outside

  • Pressure from 0.8 to 1.8 bar (depending on version)
  • Two hinges, two handwheels
Rectangular manway E129 (530x406)

Rectangular manway

E129 (530x406)

  • Pressure up to 1.8 bar
  • Vertical mounting
  • Opening to the inside
  • One hinge, two handwheels
Rectangular manway A362 (530x400)

Rectangular manway

A362 (530x400)

  • Pressure up to 1.0 bar
  • Vertical mounting
  • Mounting in the side wall of the tank
  • Opening to the outside
  • Two hinges and handwheels
  • Gasket mounted in the cover
Rectangular manway A362V (530x400)

Rectangular manway

A362V (530x400)

  • Pressure up to 1.0 bar
  • Vertical mounting
  • Mounting in the side wall of the tank
  • Opening to the outside
  • Removable cover
  • Two-sided tightening with four handwheels
  • Gasket mounted in the cover
Rectangular manway A362R (530x400)

Rectangular manway

A362R (530x400)

  • Pressure up to 2.5 bar
  • Vertical mounting
  • Mounting in the side wall of the tank
  • Opening to the outside
  • Two hinges
  • Cover with multipoint clamping
  • Gasket mounted in the cover
Rectangular manway A363 (400x530)

Rectangular manway

A363 (400x530)

  • Pressure up to 1.0 bar
  • Horizontal mounting
  • Mounting in the side wall of the tank
  • Opening to the outside
  • Two hinges and handwheels
  • Gasket mounted in the cover
Rectangular manway A363BV (400x530)

Rectangular manway

A363BV (400x530)

  • Pressure up to 0.3 bar
  • Horizontal mounting
  • Mounting in the side wall of the tank
  • Opening to the outside
  • Removable cover
  • Two handwheels
  • Gasket mounted in the cover
Rectangular manway A363R (400x530)

Rectangular manway

A363R (400x530)

  • Pressure up to 2.5 bar
  • Horizontal mounting
  • Mounting in the side wall of the tank
  • Opening to the outside
  • Two hinges
  • Cover with multipoint clamping
  • Gasket mounted in the cover
Rectangular manway A363V (400x530)

Rectangular manway

A363V (400x530)

  • Pressure up to 0.3 bar
  • Horizontal mounting
  • Mounting in the side wall of the tank
  • Opening to the outside
  • Removable cover
  • Two-sided tightening with four handwheels
  • Gasket mounted in the cover
Rectangular manway A363B (400x530)

Rectangular manway

A363B (400x530)

  • Pressure up to 0.3 bar
  • Horizontal mounting
  • Mounting in the side wall of the tank
  • Opening to the outside
  • Hinged cover with one handwheel
  • Gasket mounted in the cover
Rectangular manway A364 (530x400)

Rectangular manway

A364 (530x400)

  • Pressure up to 1.0 bar
  • Vertical mounting
  • Mounting in the side wall of the tank
  • Opening to the inside
  • Cover with two internal hinges and two handwheels
  • Gasket mounted in the cover
Rectangular manway E129/1 (530x406)

Rectangular manway

E129/1 (530x406)

  • Pressure up to 1.8 bar
  • Vertical mounting
  • Opening to the inside
  • Cover with one hinge and two handwheels
  • Possibility to rotate the cover when opened
Rectangular manway P13-409 (410x534)

Rectangular manway

P13-409 (410x534)

  • Mounting in the side wall of the tank
  • Pressure up to 1.0 bar
  • Manway in horizontal or vertical version
  • Opening to the inside
  • Two handwheels
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Surface finish options: standard / polishing / electropolishing
Rectangular manway P23-307 (314x424 / 534x410)

Rectangular manway

P23-307 (314x424 / 534x410)

  • Mounting in the side wall of the tank
  • Pressure up to 0.3 bar
  • Manway in horizontal or vertical version
  • Opening to the outside
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Surface finish options: standard / polishing / electropolishing
  • Available dimensions: 314x424 / 534x410
Rectangular manway P23-111 (410x534)

Rectangular manway

P23-111 (410x534)

  • Mounting in the side wall of the tank
  • Pressure up to 0.6 bar
  • Manway in horizontal or vertical version
  • Opening to the outside
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Surface finish options: standard / polishing / electropolishing

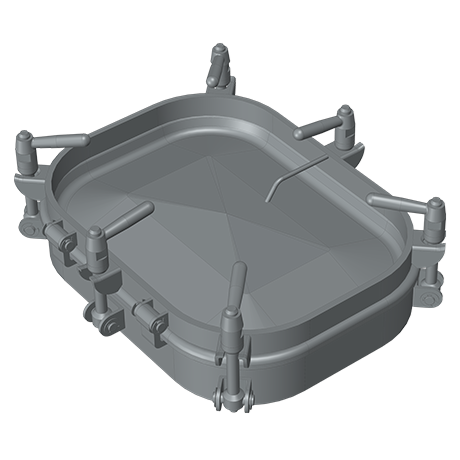

Rectangular manway P23-201 (314x424 / 410x534)

Rectangular manway

P23-201 (314x424 / 410x534)

  • Mounting in the side wall of the tank
  • Pressure up to 1.6 bar (depending on version)
  • Manway in horizontal or vertical version
  • Opening to the outside
  • Multi-point cover closure
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Surface finish options: polishing / electropolishing
  • Available dimensions: 314x424 / 410x534
Rectangular manway C38 (395x545)

Rectangular manway

C38 (395x545)

  • Cover for manways in insulated tanks
  • Installation in the side wall of the tank
  • Opening to the outside
Rectangular manway P43-031 (314x424 / 405x530)

Rectangular manway

P43-031 (314x424 / 405x530)

  • Mounting in the side wall of the concrete/cement tank
  • Pressure up to 0.5 bar
  • Opening to the outside
  • Double-hinged cover with two handwheels
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Surface finish options: standard / polishing / electropolishing
  • Available dimensions: 314x424 / 405x530
Rectangular manway P43-047 (405x530)

Rectangular manway

P43-047 (405x530)

  • Mounting in the side wall of the concrete/cement tank
  • Pressure up to 0.5 bar
  • Opening to the outside
  • Double-hinged cover with two handwheels
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Surface finish options: standard / polishing / electropolishing
Rectangular manway P43-012 (405x530 / 420x310)

Rectangular manway

P43-012 (405x530 / 420x310)

  • Mounting in the side wall of the concrete/cement tank
  • Pressure up to 0.5 bar
  • Opening to the inside
  • Double-hinged cover with one handwheel
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Surface finish options: standard / polishing / electropolishing
  • Available dimensions: 405x530 / 420x310
Rectangular manway P43-010 (405x530)

Rectangular manway

P43-010 (405x530)

  • Mounting in the side wall of the concrete/cement tank
  • Pressure up to 0.5 bar
  • Opening to the outside
  • Double-hinged cover with six handwheels
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Surface finish options: standard / polishing / electropolishing
Rectangular manway X8253MT (530x400)

Rectangular manway

X8253MT (530x400)

  • Rectangular industrial manway
  • Pressure up to 0.6 bar
  • Vacuum up to 0.5 bar
  • Suitable for use in industrial applications
  • Opening to the outside
  • Made of mild steel S235JR or stainless steel AISI 316L
  • For AISI 316L version, passivated or polished option available
  • Gasket material: EPDM, NBR, silicone or Viton
Rectangular manway X8151MT (400x530)

Rectangular manway

X8151MT (400x530)

  • Rectangular industrial manway
  • Single-arm version
  • Pressure up to 0.6 bar
  • Vacuum up to 0.5 bar
  • Suitable for use in industrial applications
  • Opening to the outside
  • Made of mild steel S235JR or stainless steel AISI 316L
  • For AISI 316L version, passivated or polished option available
  • Gasket material: EPDM, NBR, silicone or Viton
Rectangular manway E136 (600x600)

Rectangular manway

E136 (600x600)

  • Pressure up to 1.2 bar
  • Lifting flap (guillotine)
  • Slide gate for tanks and silos
  • Piston socket for automatic flap lifting
  • Gasket material: EPDM, NBR, silicone or Viton
Rectangular manway E137CN (530x406)

Rectangular manway

E137CN (530x406)

  • Pressure up to 1.6 bar
  • Lifting flap (guillotine)
  • Slide gate for tanks and silos
  • Manual flap lifting
  • Gasket material: EPDM, NBR, silicone or Viton

Key features of 501-700 mm rectangular manways

Rectangular manways 501-700 mm are designs with dimensions that allow free inspection of the inside of a tank or process equipment. Moreover, these manways, due to their dimensions, allow more advanced technical work to be carried out inside the tank.



This is because the manway's opening allows people of average physique to get through or diagnostic equipment to be introduced.



Popular versions found in this dimensional category include 400x530 mm (530x400 mm) manways. Other dimensional designs are also available.



Manways are equipped with one or more handwheels that allow the cover to be pressed down to ensure a tight seal. Stainless steel manways, using a special mechanism for raising and lowering the cover, are also available among 501-700 mm manways.



Manways use stainless steel in grades AISI 304/304L or AISI 316/316L, and in some cases mild steel.
