Rectangular manway
E129/1 (530x406)
Rectangular manway E129/1
Rectangular stainless steel manway E129/1, is a vertical manway that opens towards the inside of the tank. The E129/1 manway door is equipped with a hinge, which makes opening simple and safe. The hinge is also designed to stabilize the opened door, which, as a result, facilitates all maintenance work. This model is primarily built into the side wall of stainless steel tanks.
A characteristic feature of the E129/1 manway is the ability to rotate the cover after opening the manway (thanks to the centrally located pin on which the cover is mounted). This solution is particularly desirable for frequent inspections and maintenance activities performed in the tank.
The use of stainless steel rectangular manway E129/1
The main areas of application are:
- food industry,
- dairy industry,
- beverage and alcohol production.
With good results, the manway is successfully installed wherever the parameters of the materials used for its construction allow its application.

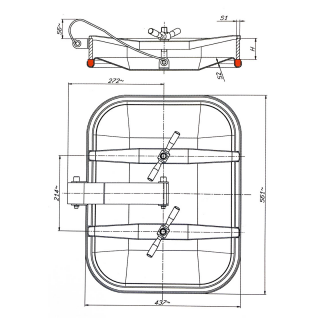

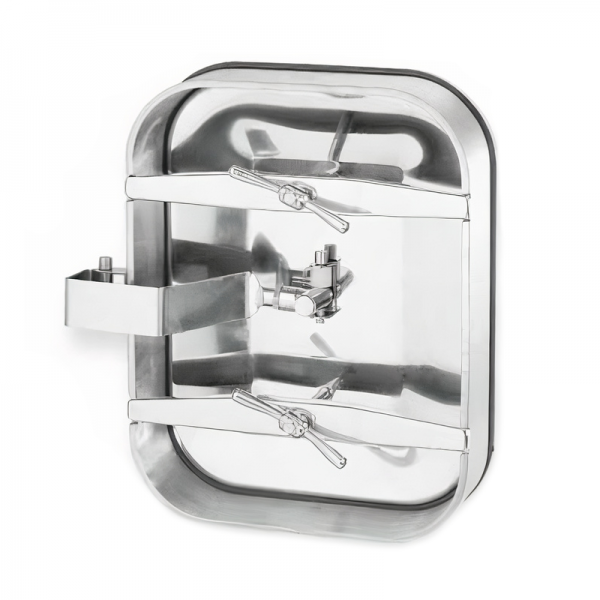

*The drawing does not show the hinge that allows the cover to rotate (the hinge is shown in the photo).
| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E129/1 | 60 | 10 | 2.5 | 1.8 |
| E129/1/A | 100 | 10 | 2.5 | 1.8 |
| E129/1/B | 60 | 12 | 2.5 | 1.8 |
| E129/1/C | 100 | 12 | 2.5 | 1.8 |
Technical parameters
| Product series | Series E |
|---|---|
| Size | L (longer manway side between 501-700 mm) |
| Shape | Rectangular manways |
| Type | Pressure manway |
| Frame height (in mm) | 60-100 mm |
| Frame wall thickness (in mm) | 10.0-12.0 mm |
| Opening type | Inward |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Silicone, Viton |
| Handwheel material | INOX |
