Rectangular manway
A363B (400x530)
Rectangular manway A363B

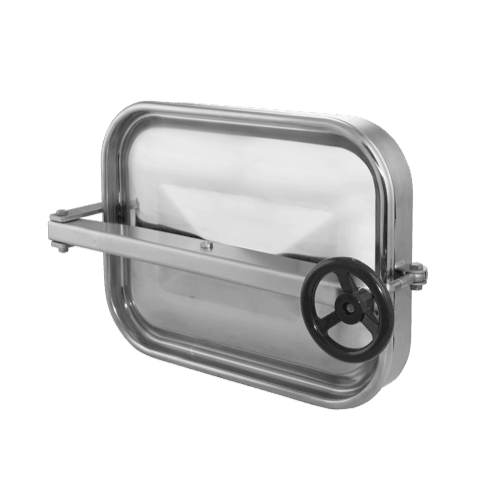

Rectangular manway A363B horizontal with outside-opened cover and single hinge. When the cover is opened, a large access opening is available, making it easy for service personnel to get inside the tank. The inside dimensions of the opening allow you to bring in the tools and equipment necessary for service work inside the tank or silo.
This model has been developed for installation in the side wall of stainless steel tanks. It can also be used as an upper manway, both in tanks and in other applications where a large and protected inspection opening is needed.
As standard, the A363B manway is manufactured from AISI 304 grade stainless steel, and optionally from AISI 316L. A wide range of elastomers used in the production of gaskets, allows the manway to be applied to many working mediums (liquids, fluids).
The use of stainless steel rectangular manway A363B
The main areas of application are:
- food industry,
- beverage and alcohol production,
- chemical and biotechnology industries,
- large diameter industrial pipelines,
- industrial equipment and chambers.
With good results, the manway is successfully installed wherever the parameters of the materials used for its construction allow its application.
| Model | A [mm] | B [mm] | HxSP1 [mm] | HT [mm]* | SP2 [mm] | MAX [bar]* | Weight [kg] |
|---|---|---|---|---|---|---|---|
| A363B | 400 | 530 |
60x8** 100x8 |
225 | 2.0 | 0.3 | 16.5 |
*For the standard version (HxSP1 = 60x8 mm).
**Standard version.

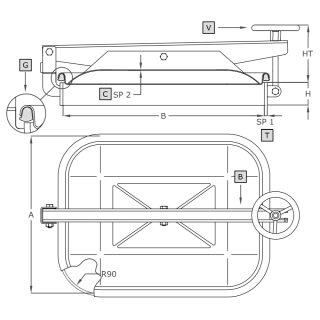

| Symbol | Element |
|---|---|
| V | handwheel |
| C | cover |
| G | gasket |
| T | frame |
Technical parameters
| Product series | Series A |
|---|---|
| Size | L (longer manway side between 501-700 mm) |
| Shape | Rectangular manways |
| Type | Non-pressure manway |
| Frame height (in mm) | 60-100 mm |
| Frame wall thickness (in mm) | 8.0 mm |
| Mounting method | in the tank roof (top manways), in the tank side wall (side manways) |
| Pressure | below 0.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Neoprene, Silicone, Viton |
| Handwheel material | Plastic, INOX |
