Rectangular manway
E129 (530x406)

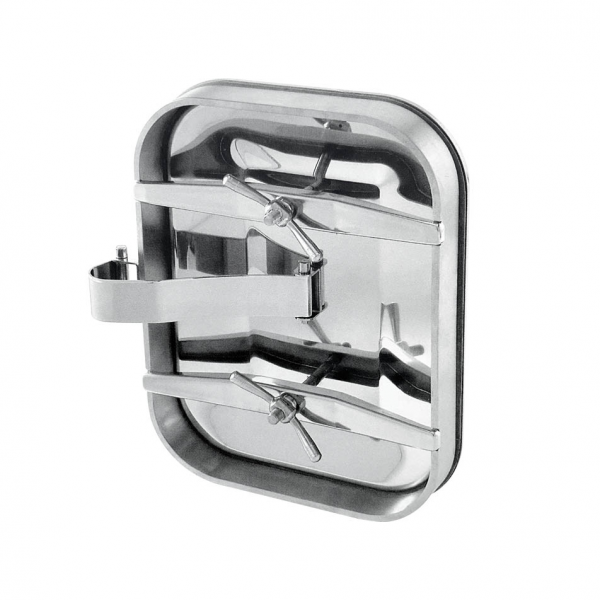

Stainless steel rectangular manway E129
Rectangular stainless steel manway E129, is a vertical construction that opens inwards. The door of the E129 manway is equipped with a hinge, which makes it easy and safe to open. The hinge is also designed to stabilize the opened door, which, as a result, makes it easier to perform maintenance work. This model is primarily built into the side wall of stainless steel tanks.
The use of oval manway E129
The main areas where the E129 manway is used are:
- food industry,
- vegetable and fruit processing,
- dairy industry.
The E129 rectangular manway is also successfully used in all types of applications that require corrosion resistance, provided that the working environment takes into account the parameters of the materials used for its construction.

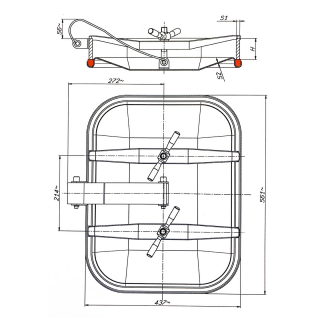

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E129 | 60 | 10 | 2.5 | 1.8 |
| E129/A | 100 | 10 | 2.5 | 1.8 |
| E129/B | 60 | 12 | 2.5 | 1.8 |
| E129/C | 100 | 12 | 2.5 | 1.8 |
Technical parameters
| Product series | Series E |
|---|---|
| Size | L (longer manway side between 501-700 mm) |
| Shape | Rectangular manways |
| Type | Pressure manway |
| Frame height (in mm) | 60-100 mm |
| Frame wall thickness (in mm) | 10.0-12.0 mm |
| Opening type | Inward |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
| Handwheel material | INOX |
