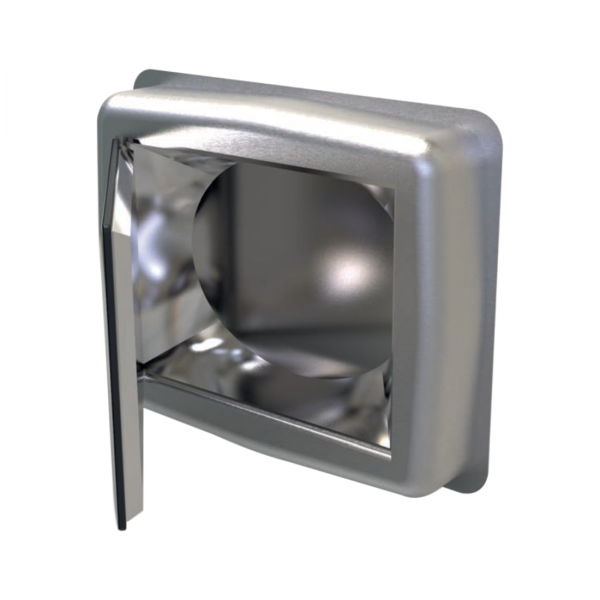

Stainless steel insulated cover C38 (395x545 mm)
Stainless steel insulated cover C38 395x545 mm is used to cover oval manways of various sizes installed in thermoinsulated tanks. With the C38 cover, the area of the tank where the oval manway is located is protected from heat loss.
The insulated cover opens outwards, while the cover of a manway mounted in the shell, usually opens towards the inside of the tank. The door and the rest of the type C38 insulated cover are manufactured from AISI 304 grade stainless steel.
The use of stainless steel insulated cover C38
The main areas of application are:
- insulated tanks of various designs and purposes,
- technological equipment and devices requiring manway insulation,
- food industry,
- beverage and alcohol production,
- chemical and biotechnology industries.

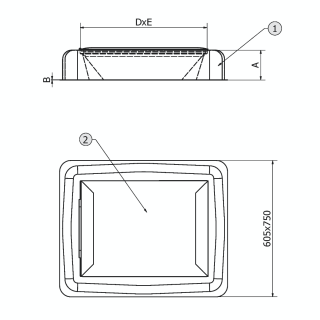

| Model | A [mm] | B [mm] | D [mm] | E [mm] |
|---|---|---|---|---|
| C38 | 135 | 1.5 |
395 |
545 |
| Symbol | Element |
|---|---|
| 1 | housing |
| 2 | cover |
Technical parameters
| Product series | Series C |
|---|---|
| Size | L (longer manway side between 501-700 mm) |
| Shape | Rectangular manways |
| Type | Non-pressure manway |
| Frame wall thickness (in mm) | 0.0 mm |
| Opening type | Outward |
| Mounting method | in the tank side wall (side manways) |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L |
| Handwheel material | No handwheel |
