Rectangular manway

A362 (530x400)

  • Pressure up to 1.0 bar
  • Vertical mounting
  • Mounting in the side wall of the tank
  • Opening to the outside
  • Two hinges and handwheels
  • Gasket mounted in the cover

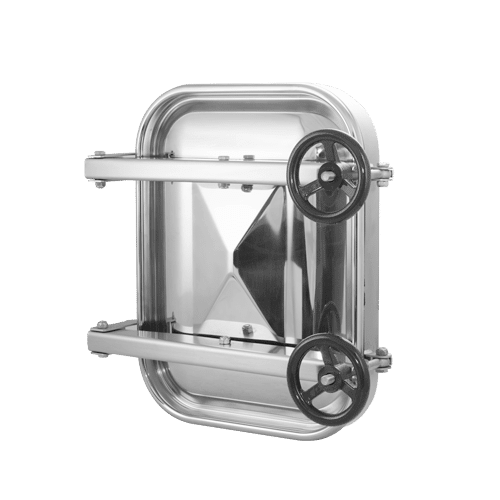

Rectangular manway A362

Rectangular vertical manway A362 with an otward-opening cover. The manway cover is supported by two hinges, so it opens safely and smoothly. After opening the cover, a large access passage is available, which makes it easy for service personnel to get inside the tank. The passage dimensions of the manway allow to bring in the tools and equipment necessary for service work inside the tank or silo.



This model has been created for installation in the side wall of stainless steel tanks. It can also be used as an upper manway, both in tanks and in other applications where a large and protected inspection opening is needed. As standard, the A362 manway is manufactured from AISI 304 grade stainless steel, and optionally from AISI 316L grade steel. A wide range of elastomers used in the production of gaskets, allows the manway to be applied to many working mediums (liquids, fluids).

The use of stainless steel rectangular manway A362

The main areas of application are:

  • food industry,
  • beverage and alcohol production,
  • chemical and biotechnology industries,
  • large diameter industrial pipelines,
  • industrial equipment and chambers.

With good results, the manway is successfully installed wherever the parameters of the materials used for its construction allow its application.

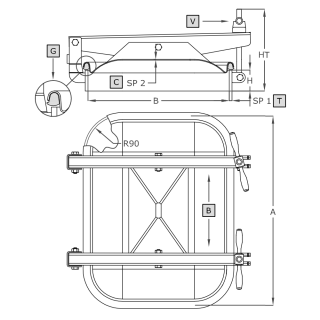

Model A [mm] B [mm] HxSP1 [mm] HT [mm]* SP2 [mm] MAX [bar]*

Weight

[kg]
A362 530 400

60x8**

80x8

100x8

215 2.0 1.0 18.52

*For the standard version (HxSP1 = 60x8 mm).

**Standard version.

Symbol Element
V handwheel
C cover
G gasket
T frame



Technical parameters

Product seriesSeries A
SizeL (longer manway side between 501-700 mm)
ShapeRectangular manways
TypePressure manway
Frame height (in mm)60-100 mm
Frame wall thickness (in mm)8.0 mm
Opening typeOutward
Mounting methodin the tank roof (top manways), in the tank side wall (side manways)
Pressure0.5 - 2.5 bar
Vacuum pressurenot applicable
PED certificateno
Steel gradeAISI 304/304L, AISI 316/316L
Gasket materialEPDM, NBR, Neoprene, Silicone, Viton
Handwheel materialPlastic, INOX
