Rectangular manway

A363R (400x530)

  • Pressure up to 2.5 bar
  • Horizontal mounting
  • Mounting in the side wall of the tank
  • Opening to the outside
  • Two hinges
  • Cover with multipoint clamping
  • Gasket mounted in the cover

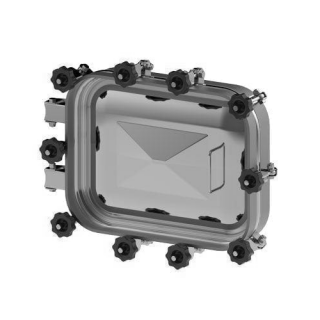

Rectangular manway A363R

Rectangular horizontal manway A363R is a model equipped with multipoint cover holding and two hinges. This type of solution ensures an even distribution of forces pressing the cover against the frame. Moreover, it has a positive effect on the tightness of the manway and increases the range of pressure that can impact on the construction.



The large entrance created when the cover is opened, allows people to get inside the tank and bring in the tools and equipment needed to carry out maintenance work.



This model is built into the side wall of stainless steel tanks as standard. It can also be used as an overhead hatch, both in tanks and in other applications where a large inspection opening and increased pressure resistance are needed.



The basic version of the A363R manway is manufactured from AISI 304 grade stainless steel and equipped with plastic handwheels. As an option, the manway is manufactured using AISI 316L grade steel and equipped with INOX screws. A wide range of elastomers used in the production of gaskets, allows the manway to be applied to many working mediums (liquids, fluids).

The use of stainless steel rectangular manway A363R

The main areas of application are:

  • food industry,
  • beverage and alcohol production,
  • chemical and biotechnology industries,
  • large diameter industrial pipelines,
  • industrial equipment and chambers.

With good results, the manway is successfully installed wherever the parameters of the materials used for its construction allow its application.

Model A [mm] B [mm] HxSP1 [mm] HT [mm]* SP2 [mm] MAX [bar]*

Weight

[kg]
A363R 400 530

60x8**

100x8

225 2.0 2.5 20.00

*For the standard version (HxSP1 = 60x8 mm).

**Standard version.

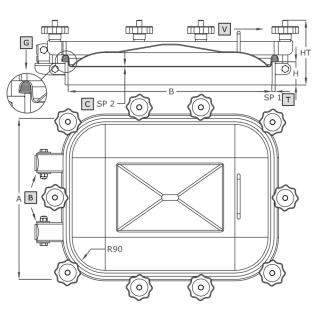

Symbol Element
V handwheel
B hinges
C cover
G gasket
T frame



Technical parameters

Product seriesSeries A
SizeL (longer manway side between 501-700 mm)
ShapeRectangular manways
TypePressure manway
Frame height (in mm)60-100 mm
Frame wall thickness (in mm)8.0 mm
Opening typeOutward
Mounting methodin the tank roof (top manways), in the tank side wall (side manways)
Pressure0.5 - 2.5 bar
Vacuum pressurenot applicable
PED certificateno
Steel gradeAISI 304/304L, AISI 316/316L
Gasket materialEPDM, NBR, Neoprene, Silicone, Viton
Handwheel materialPlastic, INOX
