Rectangular manway
E116 (406x530)
Stainless steel rectangular manway E116

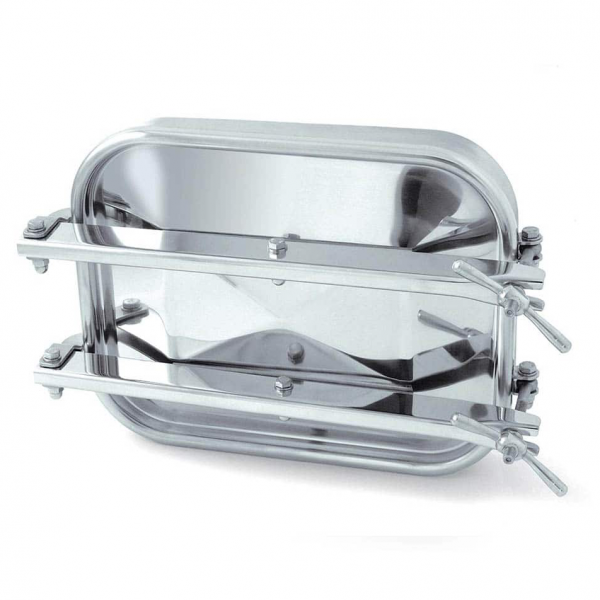

Rectangular stainless steel manway E116, is a horizontal construction that opens to the outside of the tank. The lid of the E115 manway is equipped with two hinges, making opening simple and safe. The hinges also have the task to stabilize the opened lid, which in effect makes all maintenance work easier. This model is mostly installed in the side wall of stainless steel tanks.
The use of rectangular manway E116
The main areas where the E116 manway is used are the food, fruit and vegetable processing, dairy industries. E116 rectangular manway is also successfully used in all types of applications requiring corrosion resistance, provided that the working environment takes into account the parameters of the materials used for its construction.

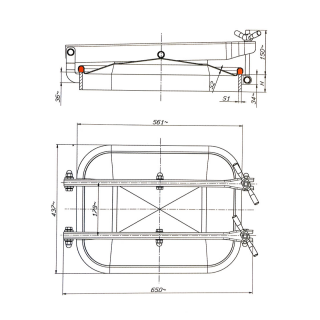

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E116 | 60 | 10 | 2.5 | 0.8 |
| E116/A | 100 | 10 | 2.5 | 1.0 |
Technical parameters
| Product series | Series E |
|---|---|
| Size | L (longer manway side between 501-700 mm) |
| Shape | Rectangular manways |
| Type | Pressure manway |
| Frame height (in mm) | 60-100 mm |
| Frame wall thickness (in mm) | 10.0 mm |
| Opening type | Outward |
| Industry | Brewing, Chemical, Dairy, Food production, Winemaking |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
| Handwheel material | INOX |
