Rectangular manway

E136 (600x600)

  • Pressure up to 1.2 bar
  • Lifting flap (guillotine)
  • Slide gate for tanks and silos
  • Piston socket for automatic flap lifting
  • Gasket material: EPDM, NBR, silicone or Viton

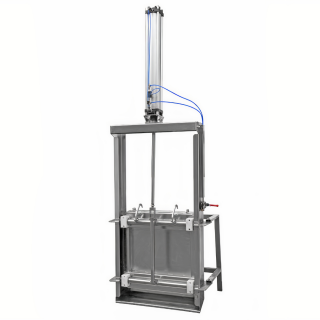

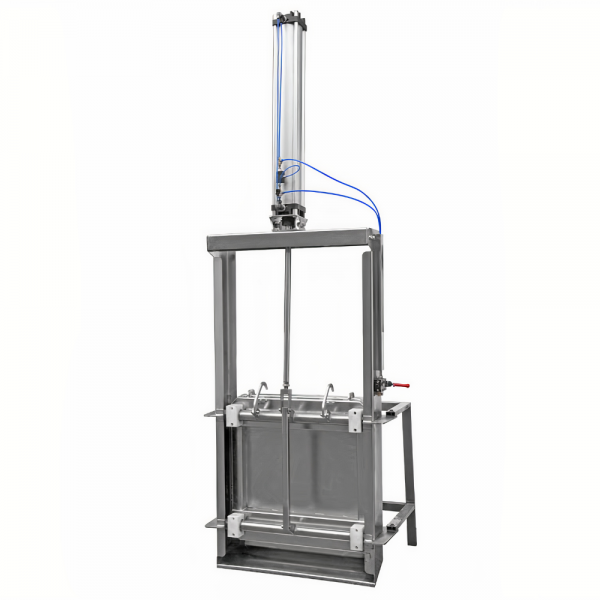

Stainless steel guillotine manway E136

Stainless steel guillotine rectangular manway E136 is a large and solid structure, which is equipped with a 600x600 mm lifting flap. The flap is mounted in a frame with guides that makes it easy to raise and drop. In the upper part of the manway there is a place designed for the installation of a piston for automatic opening and closing of the cover (the piston is not included by default).

Stainless steel guillotine manway E136 - application

Stainless steel guillotine manways are ideal for large tanks and silos used for storing various types of materials and raw materials. Therefore, the main area of application for stainless steel guillotine manway E136 is the agro-food industry and large farms. A manway of this type will also perform well:

  • in the area of vegetable and fruit processing,
  • in feed production,
  • in other areas of industrial production.

Manways (gates) of this type are also used with good results in other applications requiring corrosion resistance, provided that the working environment takes into account the parameters of the materials used in the manway construction.

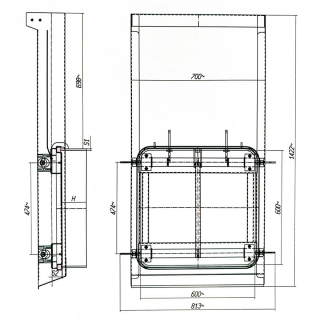

Model H [mm] S1 [mm] S2 [mm] MAX [bar]
E136 130 8 3 2.0



Technical parameters

Product seriesSeries E
SizeL (longer manway side between 501-700 mm)
ShapeRound manways
TypePressure manway
Frame height (in mm)130 mm
Frame wall thickness (in mm)8.0 mm
Opening typeGate
Mounting methodin the tank side wall (side manways)
Pressure0.5 - 2.5 bar
Vacuum pressurenot applicable
PED certificateno
Steel gradeAISI 304/304L, AISI 316/316L
Gasket materialEPDM, NBR, Silicone, Viton
Handwheel materialNo handwheel
