Rectangular manway

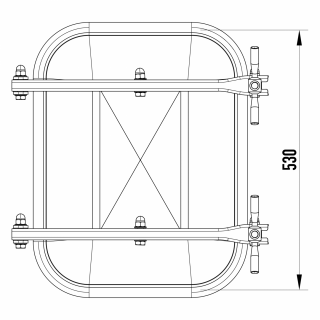

W2/A (530x406)
Stainless steel manway W2/A - key features

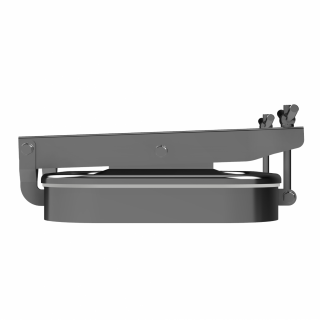

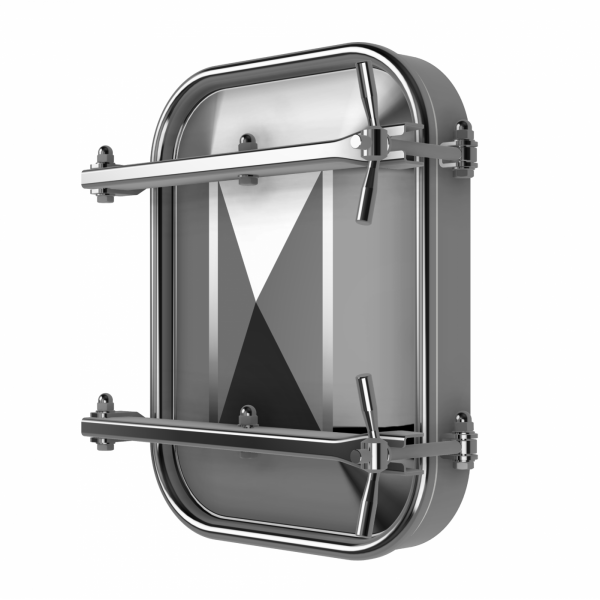

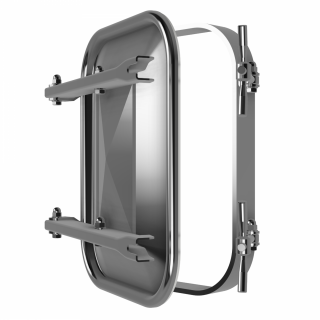

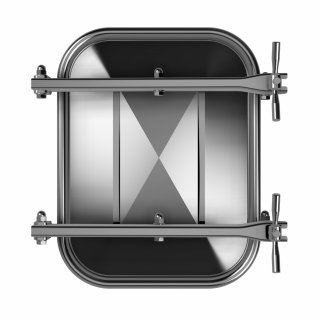

The W2/A stainless steel rectangular manway cover is a vertical construction that opens to the outside of the tank. The W2/A manway is equipped with two hinges and two pressure handwheels, making opening simple and safe. The hinges are also designed to stabilize the opened lid, which in effect makes maintenance easier. This model is mostly installed in the side wall of stainless steel tanks.
The use of rectangular manway W2/A
The main areas where the W2/A manway is used are the food, fruit and vegetable processing and dairy industries. The W2/A rectangular manway is also successfully used in all types of applications requiring corrosion resistance, provided that the working environment takes into account the parameters of the materials used for its construction.

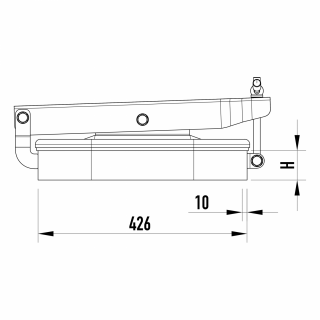

| Model | H [mm] | MAX [bar] |
|---|---|---|
| W2/A | 60 | 0.9 |
| 100 | 1.1 |
Technical parameters
| Product series | Series W |
|---|---|
| Size | L (longer manway side between 501-700 mm) |
| Shape | Rectangular manways |
| Type | Pressure manway |
| Frame height (in mm) | 60-100 mm |
| Frame wall thickness (in mm) | 10.0 mm |
| Opening type | Outward |
| Industry | Brewing, Chemical, Dairy, Food production, Winemaking |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Silicone, Viton |
| Handwheel material | INOX |
