Large diameter round manways (above DN700)

(13)
Round manway A1080 (DN800-DN1200)

Round manway

A1080 (DN800-DN1200)

  • Mounting in the roof of the tank
  • Removable cover with two handles
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted in the cover
  • Gasket material: silicone
  • Available diameters: DN800 / DN1000 / DN1200
Round manway A1090 (DN800-DN1200)

Round manway

A1090 (DN800-DN1200)

  • Mounting in the roof of the tank
  • Hinged cover with handle
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket mounted in the cover
  • Gasket material: silicone
  • Available diameters: DN800 / DN1000 / DN1200
Round manway E/1B (DN502-DN792)

Round manway

E/1B (DN502-DN792)

  • Mounting in the roof of the tank
  • Hinged cover (opened upwards and sideways)
  • Convex cover
  • Made of AISI 304L or AISI 316L stainless steel
  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN502 / DN602 / DN792

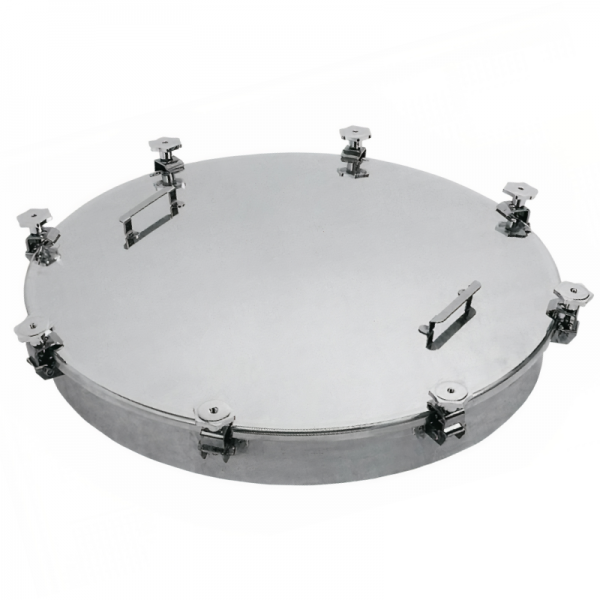

Round manway E/1M (DN223-DN1540)

Round manway

E/1M (DN223-DN1540)

  • Mounting in the roof of the tank
  • Removable cover (8 handwheels)
  • Convex cover
  • Made of stainless steel AISI 304L or AISI 316L
  • Gasket mounted on the frame

  • Gasket material: EPDM, silicone, NBR or Viton
  • Available diameters: DN223 / DN302 / DN402 / DN455 / DN502 / DN602 / DN792 / DN890 / DN1020 / DN1210 / DN1370 / DN1540
Round manway P12-510 (DN504-DN800)

Round manway

P12-510 (DN504-DN800)

  • Mounting in the side wall of the tank
  • Pressure up to 1.0 bar
  • Opening to the inside
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Surface finish options: standard / polishing / electropolishing
  • Available diameters: DN504 / DN604 / DN800
Round manway P22-800 (DN800)

Round manway

P22-800 (DN800)

  • Mounting in the roof of the tank
  • Pressure up to 1.0 bar
  • Polished hinged cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
Round manway P31-200 (DN200-DN790)

Round manway

P31-200 (DN200-DN790)

  • Mounting in the roof of the tank
  • Pressure up to 0.8 bar (depending on version)
  • Convex cover
  • Opening to the outside (upwards and sideways)
  • Manway with aseptic cover
  • Gasket mounted on the frame
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN200 / DN300 / DN430 / DN500 / DN595 / DN790
Round manway P31-080 (DN790)

Round manway

P31-080 (DN790)

  • Mounting in the roof of the tank
  • Pressure up to 0.1 bar
  • Removable cover with two handles
  • Quick-closure system
  • Manway with aseptic cover
  • Gasket mounted on the frame
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN790
Round manway P31-935 (DN900-DN1400)

Round manway

P31-935 (DN900-DN1400)

  • Mounting in the roof of the tank
  • Pressure up to 0.1 bar
  • Removable cover with two handles
  • Electropolished surface
  • Manway with aseptic cover
  • Gasket mounted on the frame
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Available diameters: DN900 / DN1200 / DN1400
Round manway B600 (DN606-DN1406)

Round manway

B600 (DN606-DN1406)

  • Mounting in the roof of the tank
  • Opening to the outside (upwards and sideways)
  • Hermetic manway with clamp closure
  • Hinged cover
  • Optional: internal safety grid / two-way relief valve / manway with smaller diameter welded to cover
  • On request version with a frame height of up to 1000 mm (standard 100 mm)
  • Gasket material: EPDM, NBR
  • Available diameters: DN606 / DN706 / DN806 / DN906 / DN1006 / DN1106 / DN1206 / DN1306 / DN1406
Round manway P42-080 (DN790)

Round manway

P42-080 (DN790)

  • Mounting in the roof of the concrete/cement tank
  • Pressure up to 0.1 bar
  • Frame suitable for concrete/cement mounting
  • Removable cover
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Available diameters: DN790
Round manway P42-1035 (DN1035-DN1400)
  • Mounting in the roof of the concrete/cement tank
  • Pressure up to 0.1 bar
  • Frame suitable for concrete/cement mounting
  • Removable cover
  • Gasket mounted on the frame
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Available diameters: DN1035 / DN1200 / DN1400
Round manway K-MC (DN600-DN800)

Round manway

K-MC (DN600-DN800)

  • Pressure up to 6.0 bar (depending on version)
  • Mounting in the side wall of the tank
  • Opening to the inside
  • Made of stainless steel AISI 316Ti (external parts: AISI 304/AISI 321, aluminium)
  • Gasket material: NBR or Viton
  • Available diameters: DN600 / DN800
