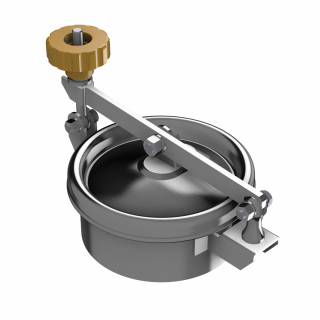

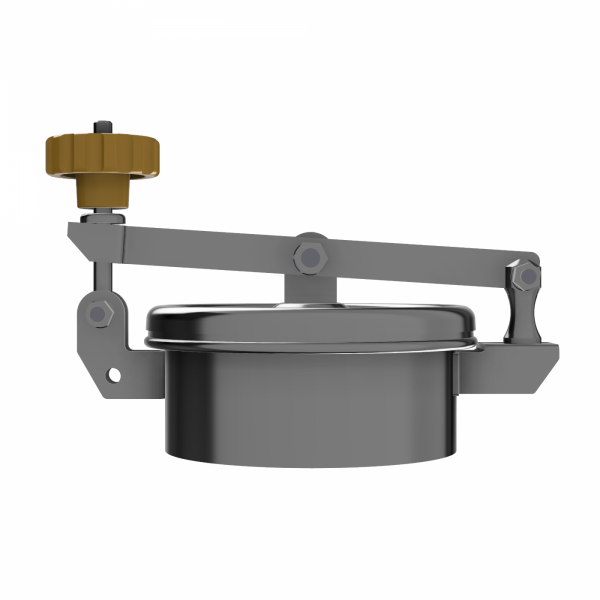

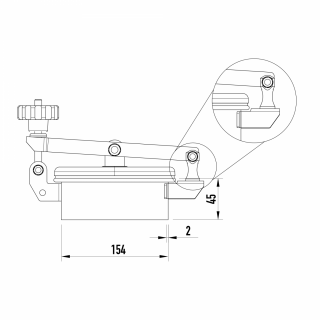

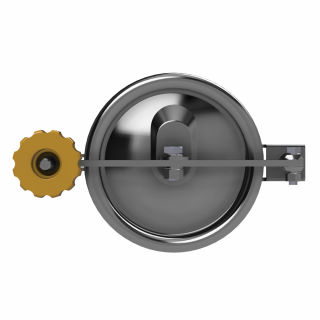

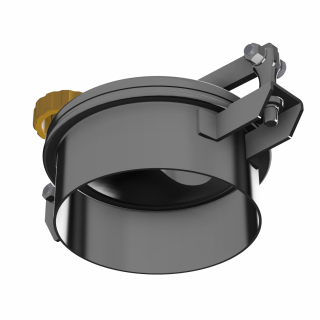

W1/C/MINI (DN150)

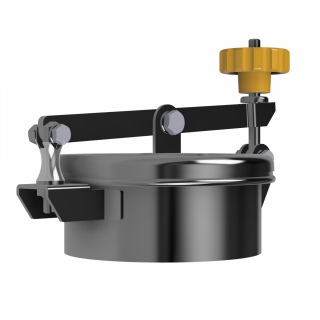

W1/C/MINI stainless round manway can be installed in the roof of a non-pressure stainless steel tank. Its hinged cover opens outwards, and a movable mounting pin allows it to be additionally moved aside. As a standard, the manway cover is equipped with an EPDM seal and a plastic handwheel.

The color of the handwheel may differ from the one shown in the pictures.

Due to its small diameter and compact construction the manway W1/C/MINI DN150 can be installed not only in tanks but also in various types of gastronomic equipment made of stainless steel. A natural working environment for this model are therefore food production plants, including dairies, distilleries, confectionery plants, manufacturers of food concentrates and related products.

This manway cover can also be successfully used in other industries, such as:

• chemical industry,
• cosmetic industry,
• biotech industry.

It can also be used in the products offered by manufacturers of small tanks, cisterns and distillers, as well as many other machines and devices. When planning the use of this type of manway in a particular application, it is necessary to take into account the properties of the materials used for its construction, to avoid problems with corrosion and resistance to temperature and chemical factors.
