Round manway
P32-305 (DN300-DN600)

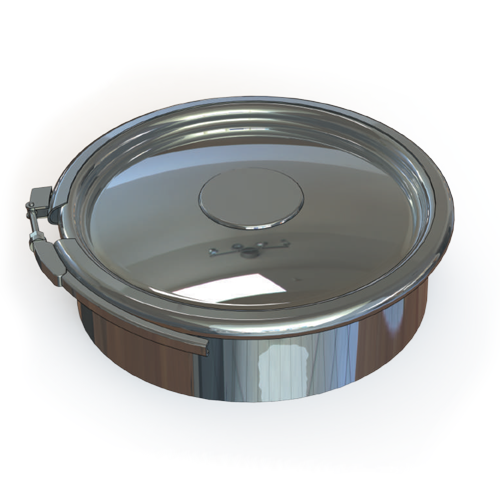

Stainless steel round manway Boyer series P32-305
Series includes: P32-305, P32-405, P32-705, P32-805
The Boyer P32-305 round manway is the smallest one in the series, which includes a total of four items with opening diameters: 300, 400, 500 and 600 mm. All manways in this series are equipped with an edge coupling (clamp closure). Releasing the coupling, allows you to fully remove the cover.
Manway components are manufactured from stainless steels in grades AISI 304L and/or AISI 316L. Both the round manway Boyer P32-305 and the other models included in this series belong to the group of round clamp manways, which is often used in the food industry and related areas.
Round manways P32-305 - application
Round manways of the P32-305 series are installed in various types of tanks and process equipment. The main areas of application for this manway model are:
- food and dairy industry,
- beverage and alcohol production industry,
- vegetable and fruit processing.
Due to its universal design and wide range of available sealing materials, this manway can also be used in the areas of:
- biotechnology,
- chemical industry,
- cosmetic industry and similar areas.
About Boyer products
Products of the French manufacturer Boyer guarantee the highest quality of construction and durability. Attention to every detail in the production process results in extremely high resistance, comfort of use and beautiful design of the manways.
They are excellent for applications where it is necessary to use a product that meets the highest standards. For this reason, Boyer brand manways are among the most popular in Europe.

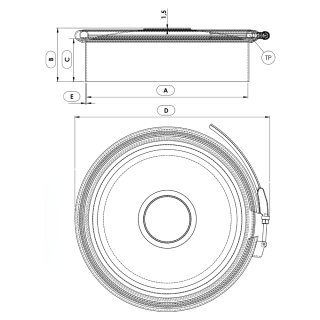

| Model | A (DN) [mm] | C [mm] | E [mm] | B [mm] | D [mm] | MAX [bar] | Weight [kg] |
|---|---|---|---|---|---|---|---|
| P32-305 | 300 | 80 | 2 | 103 | 363 | 1.2 | 3.0 |
| P32-405 | 400 | 80 | 2 | 103 | 463 | 1.0 | 5.0 |
| P32-705 | 500 | 80 | 2 | 145 | 563 | 1.0 | 8.0 |
| P32-805 | 600 | 80 | 2 | 142 | 663 | 0.6 | 10.0 |
Technical parameters
| Product series | Boyer |
|---|---|
| Shape | Round manways |
| Type | Pressure manway |
| Frame wall thickness (in mm) | 0.0 mm |
| Opening type | Outward |
| Industry | Chemical, Food production |
| Size | DN300 - DN500, DN501 - DN700 |
| Mounting method | in the tank roof (top manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Neoprene, Silicone, Silicone (high temperature - up to 250°C), Viton, Other |
| Handwheel material | Clamp closure |
