Round manway
P22-800 (DN800)

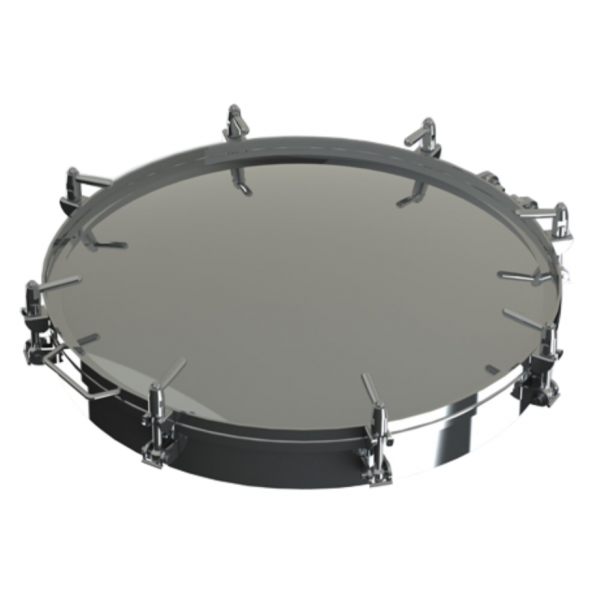

Stainless steel round manway Boyer series P22-800
Round manway P22-800, is a solid and large structure (DN800) suitable for operation at pressure up to 1.0 bar. In the basic version, the surfaces of the manway are not treated, welds and machining marks are visible. On request, all surfaces can be smoothed, and if necessary, the entire manway can be electropolished (which results in a smooth surface).
Parts of the manway which have direct contact with the working medium, are manufactured from stainless steel of AISI 316L grade. Other parts are made of AISI 304/304L grade steel. A manway of this type is installed in the roof of a stainless steel tank. The cover of the manway P22-800 has handles for easy lifting, as well as a hinge to ensure stability of opening/closing.
Round manways P22-800 - application
Round manways of the P22-800 series are installed in various types of non-pressure and pressure tanks and process equipment. The main areas of application of this manway model are:
- food and dairy industry,
- beverage and alcohol production industry,
- vegetable and fruit processing.
Due to its universal design and wide range of available sealing materials, this manway can also be used in the areas of:
- biotechnology,
- chemical industry,
- cosmetic industry and similar areas.
About Boyer products
Products of the French manufacturer Boyer guarantee the highest quality of construction and durability. Attention to every detail in the production process results in extremely high resistance, comfort of use and beautiful design of the manways.
They are excellent for applications where it is necessary to use a product that meets the highest standards. For this reason, Boyer brand manways are among the most popular in Europe.

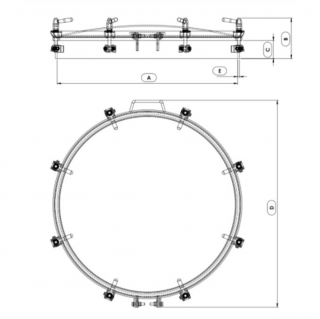

| Model | A (DN) [mm] | C [mm] | E [mm] | B [mm] | D [mm] | MAX [bar] | Weight [kg] |
|---|---|---|---|---|---|---|---|
| P22-800 | 800 | 80 | 8 | 180 | 918 | +1.0/-0.9 | 46.0 |
Technical parameters
| Product series | Boyer |
|---|---|
| Shape | Round manways |
| Type | Pressure manway |
| Frame height (in mm) | 80 mm |
| Frame wall thickness (in mm) | 8.0 mm |
| Size | above DN700 |
| Mounting method | in the tank roof (top manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | up to -0.5 bar |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Neoprene, Silicone, Silicone (high temperature - up to 250°C), Viton, Other |
| Handwheel material | INOX |
