Round manway
P12-510 (DN504-DN800)

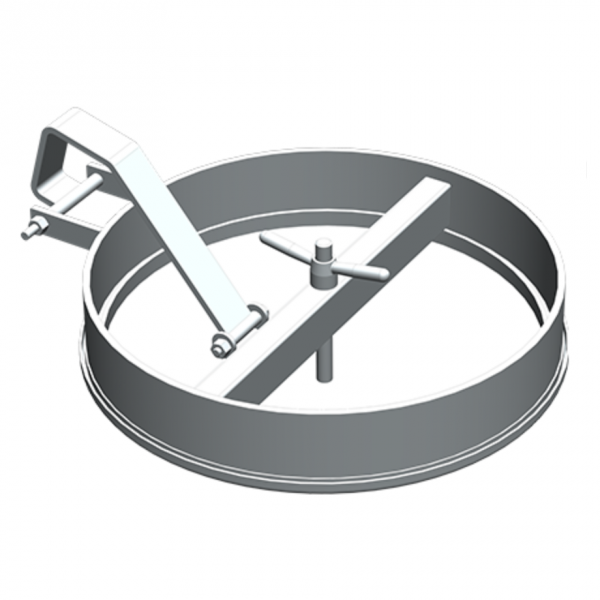

Stainless steel round manway Boyer P12-510
Series includes: P12-510, P12-610, P12-810
Round manways Boyer series P12-510 are designed for installation in pressure tanks and reactors. The manway cover is supported by a solid external hinge, which enables to open the cover towards the inside of the tank, as well as stabilizes the cover in the opened position. Manway components are manufactured from stainless steel in AISI 304L and/or AISI 316L grades.
It is possible to make a special version of the manway for use in explosive environments - ATEX for non-electrical equipment.
Round manway P12-510 - application
Round manway P12-510 is installed in autoclaves and hygienic process equipment. The main areas of application for this manway model are:
- food and dairy industry,
- beverage and alcohol production industry,
- vegetable and fruit processing.
Due to its universal design and wide range of available sealing materials, this manway can also be used in the areas of:
- biotechnology,
- chemical industry,
- cosmetic industry and similar areas.
About Boyer products
Products of the French manufacturer Boyer guarantee the highest quality of construction and durability. Attention to every detail in the production process results in extremely high resistance, comfort of use and beautiful design of the manways.
They are excellent for applications where it is necessary to use a product that meets the highest standards. For this reason, Boyer brand manways are among the most popular in Europe.

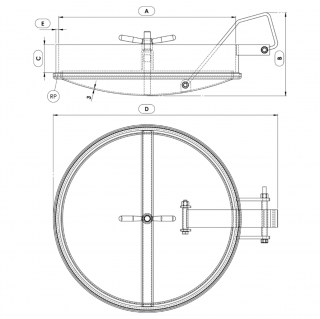

| Model | A [mm] | C [mm] | E [mm] | B [mm] | D [mm] | MAX [bar] | Weight [kg] |
|---|---|---|---|---|---|---|---|
| P12-510 | 504 | 80 | 8 | 270 | 639 | 1.0 | 22.0 |
| P12-610 | 604 | 80 | 8 | 270 | 739 | 1.0 | 26.0 |
| P12-810 | 800 | 80 | 8 | 270 | 894 | 1.0 | 35.0 |
Technical parameters
| Product series | Boyer |
|---|---|
| Shape | Round manways |
| Type | Pressure manway |
| Frame height (in mm) | 80 mm |
| Frame wall thickness (in mm) | 8.0 mm |
| Opening type | Inward |
| Size | DN501 - DN700, above DN700 |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Neoprene, Silicone, Silicone (high temperature - up to 250°C), Viton, Other |
| Handwheel material | INOX |
