Rectangular manway

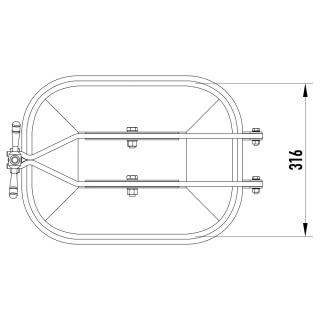

W2/D (424x316)
Stainless steel manway W2/D - key features
Stainless steel rectangular manway W2/D is a horizontal construction that can be opened outside the tank. The cover of W2/D manway is equipped with two hinges that make opening easy and safe. The hinges also have the task to stabilize the opened cover, which results in easier maintenance works. This model is mainly installed in side shells of stainless steel tanks.
Use of rectangular manway W2/D
The main areas where W2/D manway is used are food industry, fruit or vegetable processing and dairy industry. W2/Dmanway is also successfully used in all types of applications that require corrosion resistance, provided that the working environment takes into account the parameters of materials used for its construction.

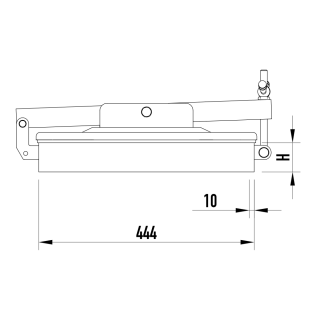

| Model | H [mm] | MAX [bar] |
|---|---|---|
| W2/D | 60 | 0.7 |
| 100 | 0.7 |
Technical parameters
| Product series | Series W |
|---|---|
| Size | M (longer manway side between 300-500 mm) |
| Shape | Rectangular manways |
| Type | Non-pressure manway |
| Frame height (in mm) | 60-100 mm |
| Frame wall thickness (in mm) | 10.0 mm |
| Opening type | Outward |
| Industry | Brewing, Chemical, Dairy, Food production, Winemaking |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Silicone, Viton |
| Handwheel material | Plastic, INOX |
