Rectangular manway

P43-047 (405x530)

  • Mounting in the side wall of the concrete/cement tank
  • Pressure up to 0.5 bar
  • Opening to the outside
  • Double-hinged cover with two handwheels
  • Gasket mounted in the cover
  • Gasket material: EPDM, neoprene, silicone (also HT - high temperature), NBR, Viton and other
  • Custom version: ATEX (requires individual consultation)
  • Surface finish options: standard / polishing / electropolishing

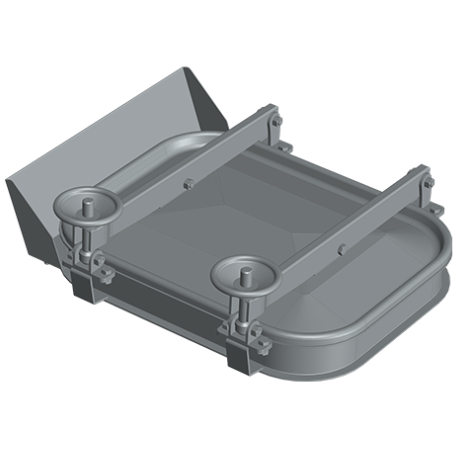

Stainless steel rectangular manway Boyer P43-047

Series includes: P43-047

Rectangular manway Boyer P43-047 is installed in the side wall of cement tanks. It can also be used as an upper manway.



Manway cover opens outwards and is equipped with two hinges, which make opening simple and safe. The hinges also have the task of stabilizing the opened cover, which, as a result, makes it easier to perform maintenance works. Manway components are manufactured from stainless steel in grades AISI 304L and/or AISI 316L.



Rectangular stainless steel manway Boyer P43-047 is successfully used in all types of applications where cement/concrete tanks are involved. It is possible to make a special version of the manway for use in potentially explosive areas - ATEX for non-electrical equipment.

Rectangular manway P43-047 - application

Rectangular manway Boyer P43-047 is installed in various types of cement tanks and process equipment. The main areas of application for this manway model are:

  • fermentation industry,
  • wine production,
  • vegetable and fruit processing.

Due to its design, this manway can also be used:

  • in multipurpose cement tanks,
  • in other cement/concrete structures.

About Boyer products

Products of the French manufacturer Boyer guarantee the highest quality of construction and durability. Attention to every detail in the production process results in extremely high resistance, comfort of use and beautiful design of the manways.

They are excellent for applications where it is necessary to use a product that meets the highest standards. For this reason, Boyer brand manways are among the most popular in Europe.

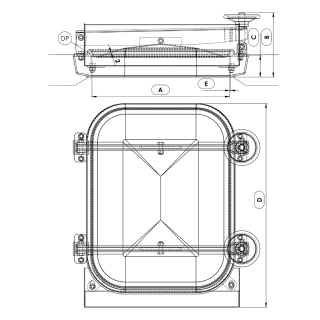

Model A [mm] C [mm] E [mm] B [mm] D [mm] MAX [bar] Weight [kg]
P43-047 405x530 66 3 189 612 0.5 19.0



Technical parameters

Product seriesBoyer
SizeL (longer manway side between 501-700 mm)
ShapeRectangular manways
TypeNon-pressure manway
Frame height (in mm)66 mm
Frame wall thickness (in mm)3.0 mm
Opening typeOutward
Mounting methodin the tank roof (top manways), in the tank side wall (side manways)
Pressure0.5 - 2.5 bar
Vacuum pressurenot applicable
PED certificateno
Steel gradeAISI 304/304L, AISI 316/316L
Gasket materialEPDM, NBR, Neoprene, Silicone, Silicone (high temperature - up to 250°C), Viton, Other
Handwheel materialINOX, Other
