Rectangular manway
P23-201 (314x424 / 410x534)

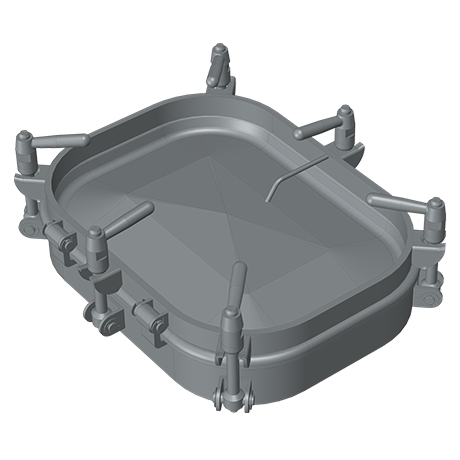

Stainless steel rectangular manway Boyer P23-201
Series includes: P23-201, P23-202, P23-203, P23-204
Rectangular vertical manways Boyer P23-201/P23-203 and horizontal manways P23-202/P23-204 are very solid and durable structures. They are installed in the side walls of stainless steel pressure and non-pressure tanks. They can also be used as upper manways.
The hinged covers (outward opened) are equipped with two hinges and handle, which makes lifting simple and safe. Handwheels arranged around the edge of the cover and a proper gasket ensure the tightness of the construction. Manway components are manufactured from stainless steels in grades AISI 304L and/or AISI 316L.
Rectangular stainless manway Boyer P23-201 is successfully used in all types of applications requiring high hygiene and/or increased corrosion resistance. It is possible to make a special version of the manway for use in potentially explosive areas - ATEX for non-electrical equipment.
Rectangular manway P23-201 - application
Rectangular manways P23-201 are installed in pressure tanks and process equipment. The main areas of application for this manway model are:
- food and dairy industry,
- beverage and alcohol production industry,
- vegetable and fruit processing.
Due to its universal design and wide range of available sealing materials, this manway can also be used in the areas of:
- biotechnology,
- chemical industry,
- cosmetic industry and similar areas.
About Boyer products
Products of the French manufacturer Boyer guarantee the highest quality of construction and durability. Attention to every detail in the production process results in extremely high resistance, comfort of use and beautiful design of the manways.
They are excellent for applications where it is necessary to use a product that meets the highest standards. For this reason, Boyer brand manways are among the most popular in Europe.

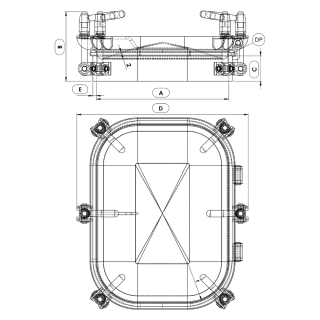

| Model | A [mm] | C [mm] | E [mm] | B [mm] | D [mm] | Handwheels | MAX [bar] | Vacuum [bar] | Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|
| P23-201 | 314x424 | 60 | 8 | 155 | 402 | 6 | 1.6 | 0.8 | 13.0 |
| P23-202 | 424x314 | 60 | 8 | 155 | 480 | 6 | 1.6 | 0.8 | 13.0 |
| P23-203 | 410x534 | 60 | 8 | 155 | 498 | 6 | 1.2 | 0.9 | 18.0 |
| P23-204 | 534x410 | 60 | 8 | 155 | 590 | 6 | 1.2 | 0.9 | 18.0 |
Technical parameters
| Product series | Boyer |
|---|---|
| Size | M (longer manway side between 300-500 mm) |
| Shape | Rectangular manways |
| Type | Pressure manway |
| Frame height (in mm) | 60 mm |
| Frame wall thickness (in mm) | 8.0 mm |
| Opening type | Outward |
| Mounting method | in the tank roof (top manways), in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | from -0.51 to -1.0 bar |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Neoprene, Silicone, Silicone (high temperature - up to 250°C), Viton, Other |
| Handwheel material | INOX, Other |
