E133 (600x800)

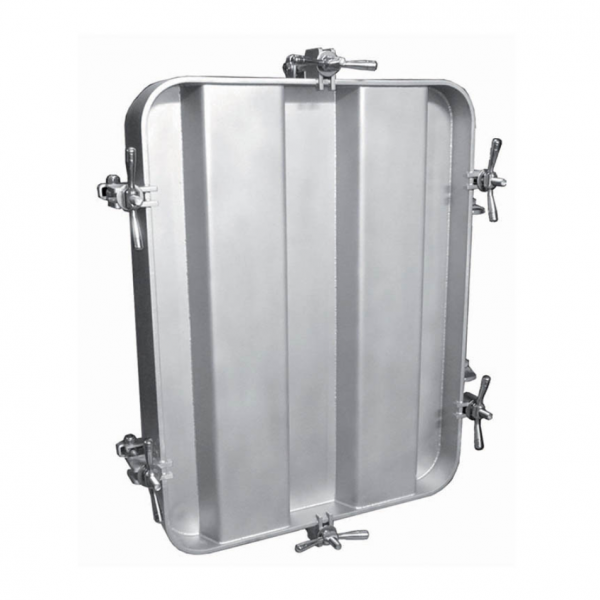

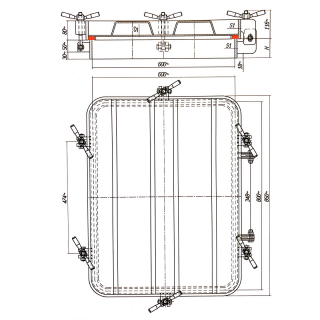

Stainless steel rectangular manway E133, is a very large vertical construction with a solid and strong cover. The manway door opens to the outside of the tank, and thanks to the hinges, this activity is simple and safe. In addition, the hinges stabilize the door when it is opened, which ultimately makes it easier to carry out any ongoing maintenance works.

To ensure a tight seal, the E133 manhole is equipped with a gasket, as well as six handwheels arranged around the edges. Due to its dimensions, the E133 rectangular manway fulfills the role of an inspection door in very large stainless steel tanks and silos.

After welding appropriate fasteners to the mounting frame, the manhole can be embedded in a concrete base, which expands the possible area of use of the manhole to concrete tanks, hydrological structures and similar objects. However, it should be noted that the adjustment and use of the manway in such applications is entirely at the risk of the user.

The main areas in which the E133 manway is used are large stainless steel tanks for agro-food industry, vegetable processing, fruit processing and similar areas.

In addition, the E133 rectangular manhole is also successfully used in all types of applications requiring corrosion resistance. However, it is absolutely necessary to remember, when selecting a manway for a specific application, to take into account the properties of the materials used in its construction.
