Rectangular manway
E132 (450x750)

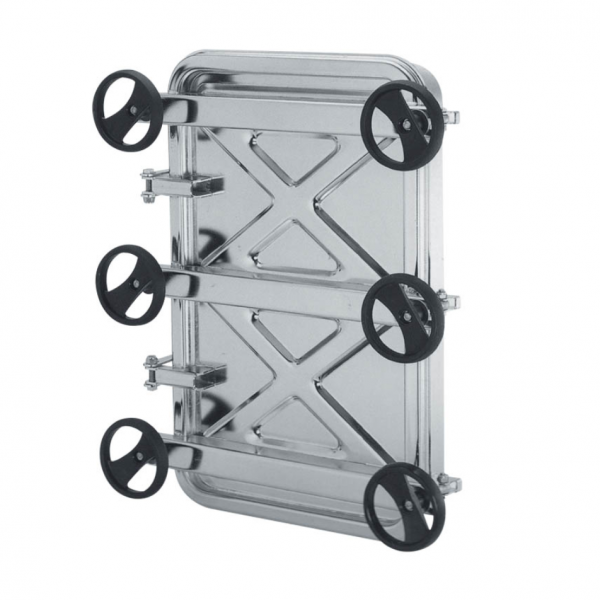

Stainless steel rectangular manway E132
Rectangular stainless steel manway E132, is a large vertical construction with a very solid cover, which opens to the outside of the tank. The door of the E132 manhole is equipped with a hinge, making it easy and safe to operate. The hinge is also designed to stabilize the opened lid, which, as a result, makes all everyday maintenance work easier.
This model is primarily built into the side wall of large tanks and silos made of stainless steel.
Tanks, as well as silos of this type, are usually used for storing bulk raw materials (liquid or loose) in agri-food, grain and similar processing plants. With good results, the E132 type rectangular manway will also work well in the chemical industry, plastics production and similar sectors.
The E132 manway is successfully used in all types of applications requiring increased corrosion resistance. It is important to always consider the properties and chemical resistance of the materials used in its construction when selecting a manway for a specific working environment.
| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E131 | 80 | 10 | 2.5 | 1.5 |
Technical parameters
| Product series | Series E |
|---|---|
| Size | XL (longer manway side above 700 mm) |
| Shape | Rectangular manways |
| Type | Pressure manway |
| Frame height (in mm) | 80 mm |
| Frame wall thickness (in mm) | 10.0 mm |
| Opening type | Outward |
| Industry | Chemical, Food production |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L |
| Gasket material | EPDM, Silicone |
| Handwheel material | Plastic, INOX |
