Rectangular manway
E131 (424x316)

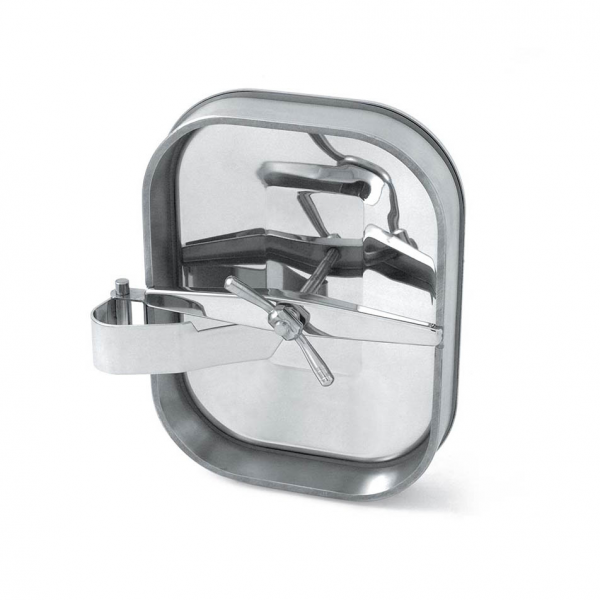

Stainless steel rectangular manway E131
Rectangular stainless steel manway E131, is a vertical construction that opens into the inside of the tank. The E131 manway is equipped with a solid external hinge, making opening simple and safe. The hinge is also designed to stabilize the opened lid, which, as a result, makes it easier to perform maintenance works. This model is primarily built into the side wall of stainless steel tanks.
The use of stainless steel rectangular manway E131
The main areas where the E131 manway is used are the food industry, brewery, dairy industry. It will also perform well in beverage production, distilling, as well as the cosmetics, chemical and biotechnology industries.
The E131 rectangular manway is also successfully used in all types of applications requiring corrosion resistance, provided that the working environment takes into account the parameters of the materials used in its construction.

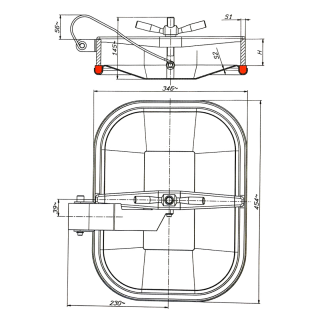

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E131 | 60 | 10 | 2 | 2.0 |
| E131/A | 100 | 8 | 2 | 2.0 |
Technical parameters
| Product series | Series E |
|---|---|
| Size | M (longer manway side between 300-500 mm) |
| Shape | Rectangular manways |
| Type | Pressure manway |
| Frame height (in mm) | 60 mm |
| Frame wall thickness (in mm) | 8.0-10.0 mm |
| Opening type | Inward |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
