Rectangular manway
E130 (424x316)

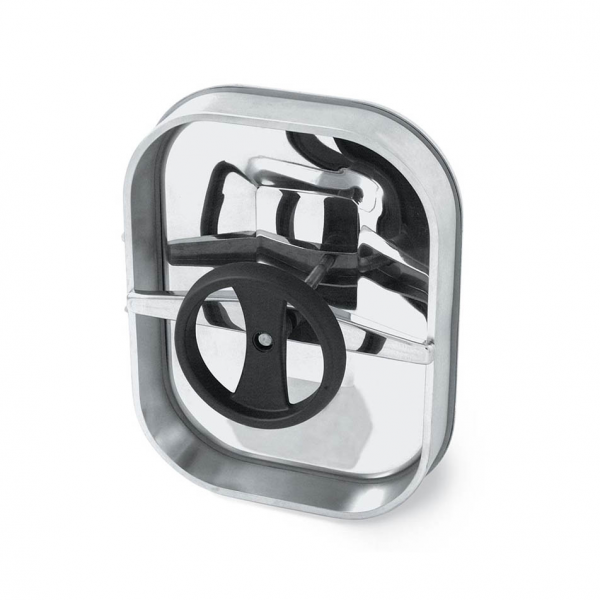

Stainless steel rectangular manway E130
Rectangular stainless steel manway E130, is a vertical construction that opens inwards. The E130 manway cover is equipped with a solid hinge, making it easy and safe to open. The hinge is also designed to stabilize the opened lid, which in effect makes it easier to perform maintenance work. This model is built into the side wall of stainless steel tanks.
The use of oval manway E130
The main areas where the model is used are:
- food industry,
- brewery,
- dairy industry.
It will also work well in beverage production, distilling, as well as the cosmetics, chemical and biotechnology industries.
The E130 rectangular manway is also successfully used in all types of applications requiring corrosion resistance, provided that the working environment takes into account the parameters of the materials used in its construction.

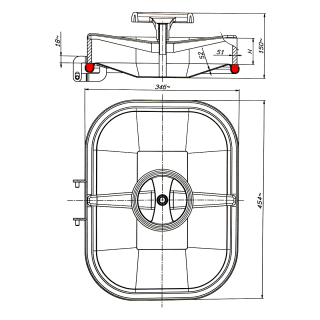

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E130 | 60 | 10 | 2 | 2.0 |
| E130/A | 100 | 10 | 2 | 2.0 |
| E130/B | 60 | 8 | 2 | 2.0 |
| E130/C | 100 | 8 | 2 | 2.0 |
Technical parameters
| Product series | Series E |
|---|---|
| Size | M (longer manway side between 300-500 mm) |
| Shape | Rectangular manways |
| Type | Pressure manway |
| Frame height (in mm) | 60-100 mm |
| Frame wall thickness (in mm) | 8.0-10.0 mm |
| Opening type | Inward |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
| Handwheel material | Plastic, INOX |
