E124 (316x424)

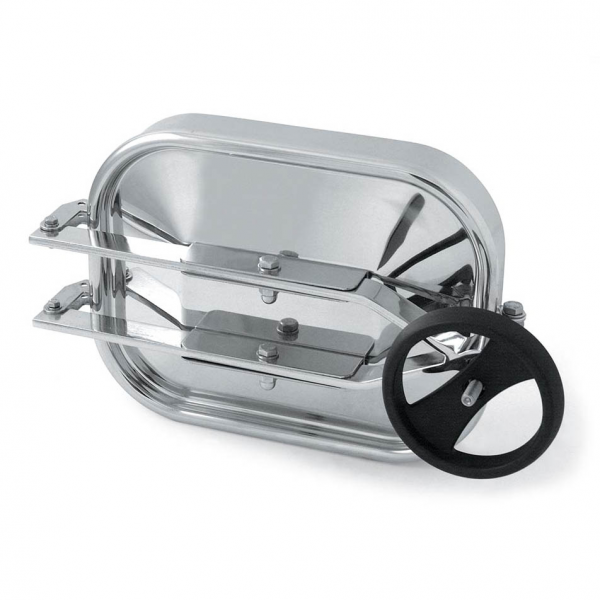

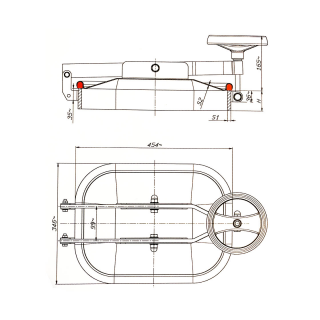

Stainless steel rectangular manway E124, is a medium-sized model with two hinges and a handwheel. The design parameters of the manway ensure that it can be used in tanks and equipment where the working pressure is not higher than 0.7 bar. The manway is equipped with an EPDM gasket as standard (other materials optional). The cover opens to the outside of the tank.

A double hinge guarantees proper load distribution, making it easy and safe to open and close the manway in both horizontal and vertical positions. The hinge is also designed to stabilize the opened lid, which in effect makes maintenance work easier.

This model can be built into both the side wall and roof of stainless steel tanks. It can also be built into various types of process and production equipment, as well as those that require periodic inspection.

The main area where the E124 manway is used with great success are tanks and equipment involved in food production, including the sugar industry, fruit and vegetable processing as well as the dairy industry. Rectangular manway E124 is also successfully used in all types of industrial applications requiring increased corrosion resistance.

In practice, the scope of use of E124 manway is limited only by the imagination of designers, and the resistance of the materials used for its construction.
