Rectangular manway
E123 (424x316)

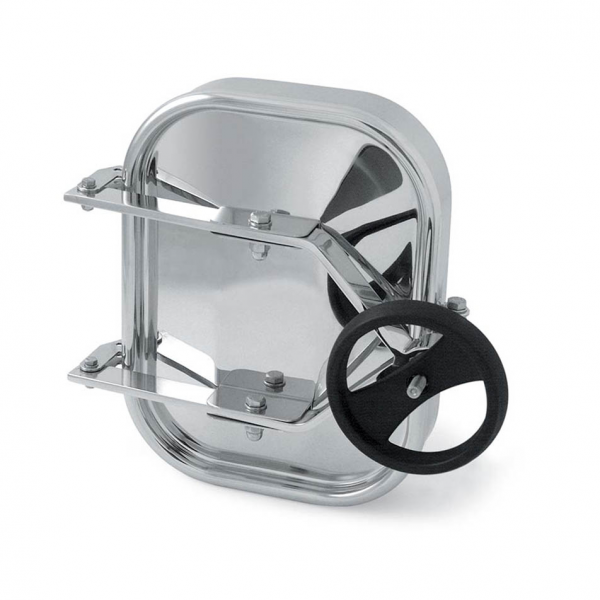

Stainless steel rectangular manway E123
Rectangular stainless steel manway E123, is a vertical construction that opens to the outside of the tank. The E123 manway lid is equipped with a double hinge, which makes opening simple and safe. The hinge is also designed to stabilize the opened lid, which in effect makes maintenance easier. This model is primarily installed in the side wall of stainless steel tanks.
The use of rectangular manway E123
The main areas in which the E123 manway is used are the food, fruit and vegetable processing, as well as dairy industries. The E123 rectangular manway is also successfully used in all types of applications requiring corrosion resistance, provided that the working environment takes into account the parameters of the materials used for its construction.

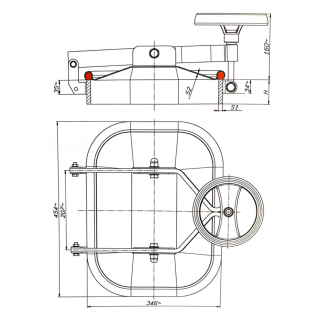

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E123 | 60 | 10 | 2 | 0.7 |
| E123/A | 100 | 10 | 2 | 0.7 |
Technical parameters
| Product series | Series E |
|---|---|
| Shape | Rectangular manways |
| Type | Non-pressure manway |
| Frame height (in mm) | 60-100 mm |
| Frame wall thickness (in mm) | 10.0 mm |
| Opening type | Outward |
| Industry | Brewing, Chemical, Dairy, Winemaking |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
| Handwheel material | Plastic, INOX |
