Rectangular manway
E122 (316x424)
Stainless steel rectangular manway E122

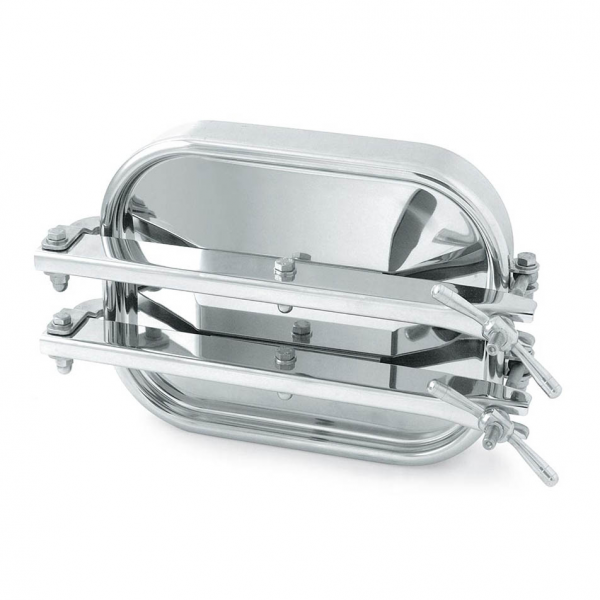

Stainless steel rectangular manway E122, is a horizontal construction that opens to the outside of the tank. The lid of the E122 manway is equipped with two hinges, making opening simple and safe. The hinges also have the task to stabilize the opened lid, which in effect makes all maintenance work easier. This model is primarily built into the side wall of stainless and steel tanks.
The use of rectangular manway E122
The main areas where the E122 manway is used are the food, sugar, fruit and vegetable processing as well as dairy industries. Rectangular manway E122 is also successfully used in all types of applications requiring corrosion resistance, provided that the working environment takes into account the parameters of the materials used for its construction.

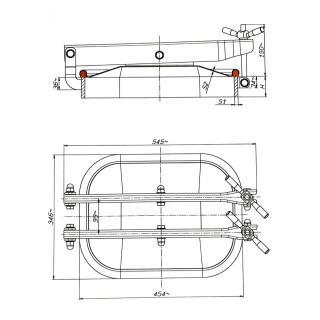

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E122 | 60 | 10 | 2 | 1.0 |
| E122/A | 100 | 10 | 2 | 1.2 |
Technical parameters
| Product series | Series E |
|---|---|
| Size | M (longer manway side between 300-500 mm) |
| Shape | Rectangular manways |
| Type | Pressure manway |
| Frame height (in mm) | 60-100 mm |
| Frame wall thickness (in mm) | 10.0 mm |
| Opening type | Outward |
| Industry | Brewing, Chemical, Dairy, Food production, Winemaking |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
| Handwheel material | INOX |
