Rectangular manway C68 (400x450 mm)

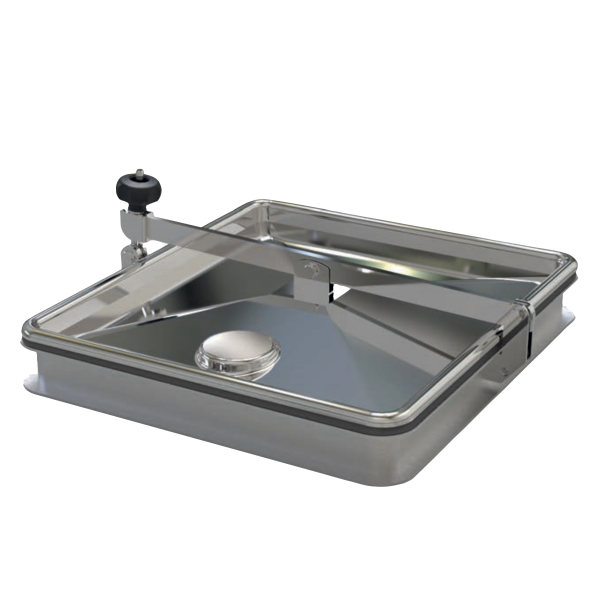

Rectangular stainless steel manway C68 (400×450 mm) is designed for installation in tanks, as well as in all types of process equipment and chambers. The 400×450 mm opening dimension allows the manway to be used for both loading and service or inspection purposes.
Rectangular manway C68 is equipped with a cover that opens to the outside of the tank. The compact and strong construction make the manway well suited for places where it is necessary to open the cover frequently to inspect the process or fill in raw materials. It will also work well as an inspection manway or protection of chambers with measuring instruments. This model was designed to be built into the roof of a stainless steel tank, but a dedicated flange at the bottom of the frame allows the manway to be installed in a cement base as well.
As standard, the C68 manway is manufactured from AISI 304 grade stainless steel, and optionally from AISI 316L. A wide range of materials used in the production of gaskets, allows the manway to be used in contact with a variety of working media (liquids).
The use of stainless steel square manway C68
The main areas of application are:
- food industry,
- beverage and alcohol production,
- chemical and biotechnology industries,
- industrial equipment and chambers.
With good results, the manway is successfully installed wherever the parameters of the materials used for its construction allow its application.
| Model | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | MAX [bar] |
|---|---|---|---|---|---|---|
| C68 | 50 | 3 | 1.5 |
431 |
474 | 0.02 |

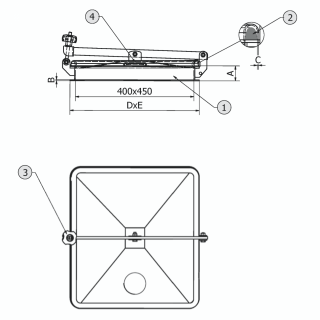

| Symbol | Element |
|---|---|
| 1 | frame |
| 2 | gasket |
| 3 | handwheel |
| 4 | cover |
Technical parameters
| Product series | Series C |
|---|---|
| Size | M (longer manway side between 300-500 mm) |
| Shape | Rectangular manways |
| Type | Non-pressure manway |
| Frame height (in mm) | 50 mm |
| Frame wall thickness (in mm) | 3.0 mm |
| Opening type | Outward |
| Mounting method | in the tank roof (top manways) |
| Pressure | below 0.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Neoprene, Silicone, Viton |
| Handwheel material | Plastic, INOX |
