Rectangular manway

A381L (175x225)

  • Pressure up to 0.7 bar
  • Horizontal mounting
  • Mounting in the side wall of the tank
  • Opening to the outside
  • Cover with hinge and handwheel
  • Gasket mounted in the cover

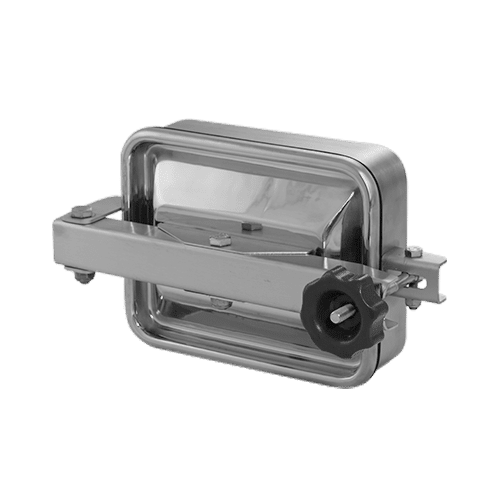

Rectangular manway A381L

Rectangular vertical manway A381L with cover opening outside the tank. The small size and solid construction make the manway well suited for places where it is necessary to open the cover frequently to inspect the process. If necessary, the manway will also allow sampling, product filling or inserting of a washing ball.

This model was developed for installation in the side wall of stainless steel tanks. It can also be used as an upper manway, both in tanks and in other applications requiring increased corrosion resistance and small dimensions.

As standard, the A381L manway is manufactured from AISI 304 grade stainless steel, and optionally from AISI 316L grade steel. A wide range of elastomers used in the manufacture of gaskets, allows the manway to be used for a wide range of working media (fluids, liquids).

The use of stainless steel rectangular manway A381L

The main area of usage is:

  • food industry,
  • beverage and alcohol production,
  • chemical and biotechnology industries,
  • small tanks.

With good results, the manway is successfully installed wherever the parameters of the materials used for its construction allow its application.

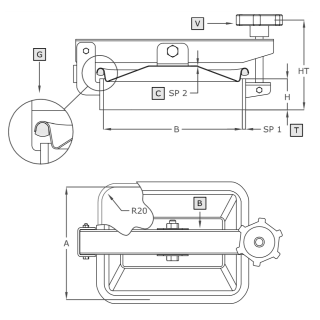

Model A [mm] B [mm] HxSP1 [mm] HT [mm]* SP2 [mm] MAX [bar]* Weight [kg]
A381L 174 223

50x6**

30x6

100x6

130 1.0 0.7 4.0

*For the standard version (HxSP1 = 50x6 mm).

**Standard version.

Symbol Element
V handwheel
B arm
C cover
G gasket
T frame



Technical parameters

Product seriesSeries A
SizeS (longer manway side below 300 mm)
ShapeRectangular manways
TypeNon-pressure manway
Frame height (in mm)30-100 mm
Frame wall thickness (in mm)6.0 mm
IndustryChemical, Food production
Mounting methodin the tank roof (top manways), in the tank side wall (side manways)
Pressure0.5 - 2.5 bar
Vacuum pressurenot applicable
PED certificateno
Steel gradeAISI 304/304L, AISI 316/316L
Gasket materialEPDM, NBR, Neoprene, Silicone, Viton
Handwheel materialPlastic, INOX
