Rectangular manway
E135 (800x1000)
Stainless guillotine manway E135

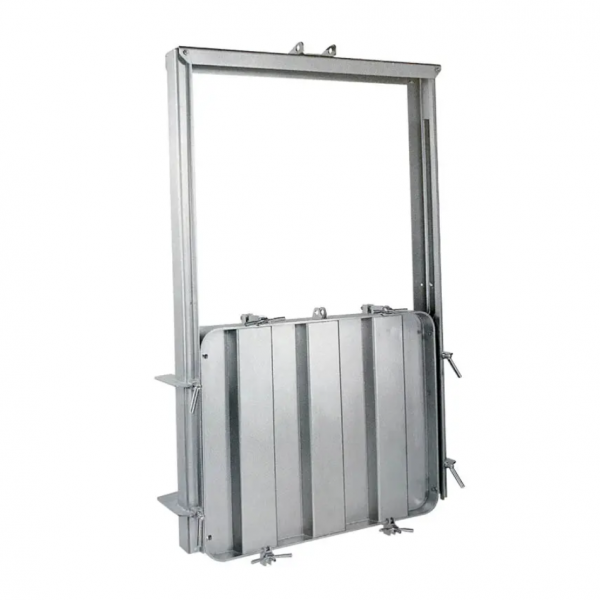

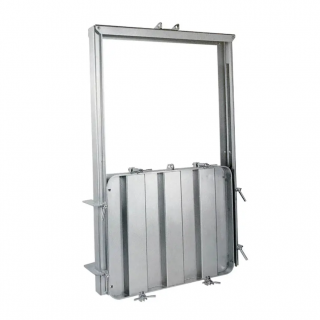

The stainless steel guillotine manway E135 is a very solid construction, which is equipped with a lifting flap. The flap can be locked in the desired position by eight handwheels. This model is ideal for large tanks and silos. Typically, it is used in silos used for storing raw materials, which are then used in the production process. Therefore, the main area of application for the E135 stainless steel guillotine manway is the agro-food industry, as well as the fruit and vegetable processing industry.
Model E135N - version with piston
It is possible to build a manway (slide gate) in a version equipped with a pneumatic piston (manway type E135N). The use of a pneumatic piston gives the possibility to automate the process of opening and closing the cover. This, as a result, makes it possible for the manway to operate in equipment and machines that dispense bulk raw materials in production processes.
Manholes of this type are also used with good results in other applications requiring corrosion resistance, provided that the operating environment takes into account the parameters of the materials used in their construction.

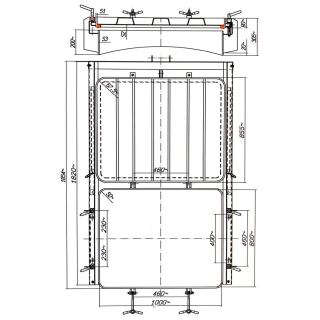

| Model | H [mm] | S1 [mm] | S2 [mm] | S3 [mm] | MAX [bar] |
|---|---|---|---|---|---|
| E135 | 200 | 10 | 4 | 8 | 1.2 |
| E135N | 100 | 10 | 3 | - | 1.2 |
Technical parameters
| Product series | Series E |
|---|---|
| Size | XL (longer manway side above 700 mm) |
| Shape | Rectangular manways |
| Type | Pressure manway |
| Frame height (in mm) | 100-200 mm |
| Frame wall thickness (in mm) | 10.0 mm |
| Opening type | Gate |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
| Handwheel material | INOX |
