E134N (600x800)

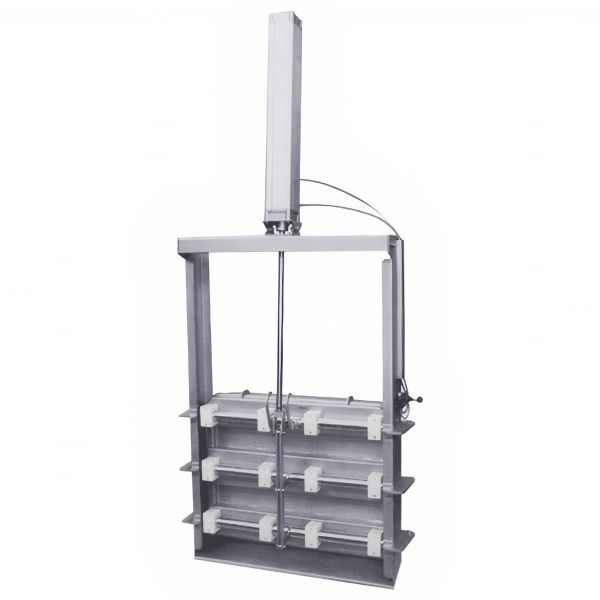

Stainless steel guillotine rectangular manway E134N is a large and solid structure, which is equipped with a 600x800 mm lifting flap. The flap is mounted in a frame with guides that makes it easy to raise and drop. In the upper part of the manway there is a place designed for the installation of a piston for automatic opening and closing of the cover (the piston is not included by default).

Stainless steel guillotine manways are ideal for large tanks and silos used for storing various types of materials and raw materials. Therefore, the main area of application for stainless steel guillotine manway E134N is the agro-food industry and large farms. A manway of this type will also perform well:

• in the area of vegetable and fruit processing,
• in feed production,
• in other areas of industrial production.

Manways (gates) of this type are also used with good results in other applications requiring corrosion resistance, provided that the working environment takes into account the parameters of the materials used in the manway construction.
