E134 (600x800)

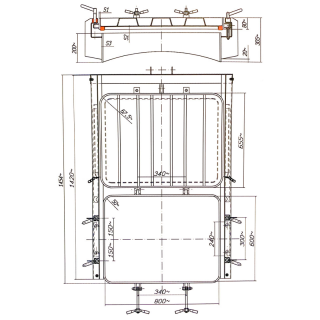

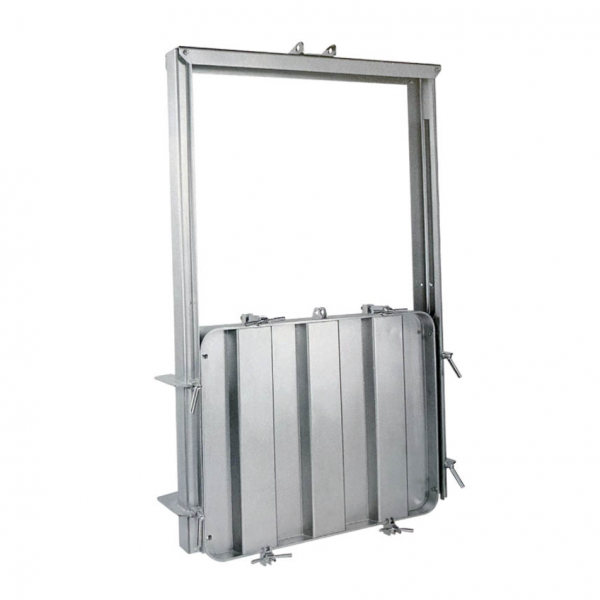

Stainless steel guillotine rectangular manway E134 is a large and solid structure, which is equipped with a 600x800 mm lifting flap. The flap is mounted in a frame with guides that make it easy to raise and drop. In the upper part of the flap there is a handle, to which a rope for lifting it is attached. Eight handwheels allow the flap to be locked in the desired position.

Stainless steel guillotine manways are ideal for large tanks and silos used for storing various types of products and raw materials. Therefore, the main area of application for the E134 stainless steel guillotine manway is the agro-food industry, as well as the fruit/vegetable processing industry and large farms.

Manways (gates) of this type are also used with good results in other applications requiring corrosion resistance, provided that the operating environment takes into account the parameters of the materials used in the construction of the manway.
