Oval manway

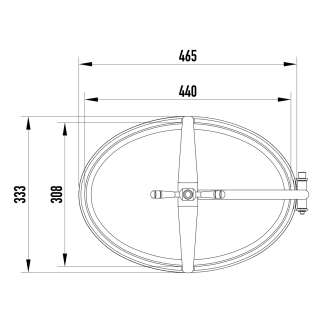

W3/F (440x308)
Stainless steel manway W2/D - key features

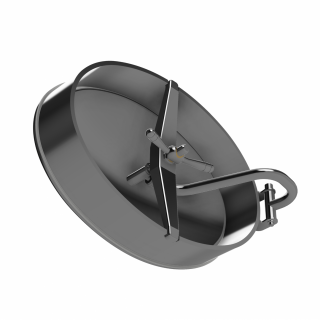

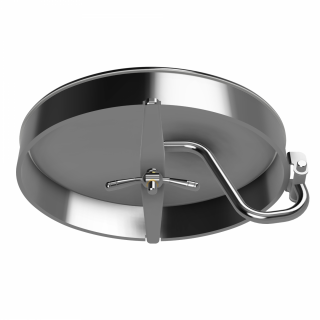

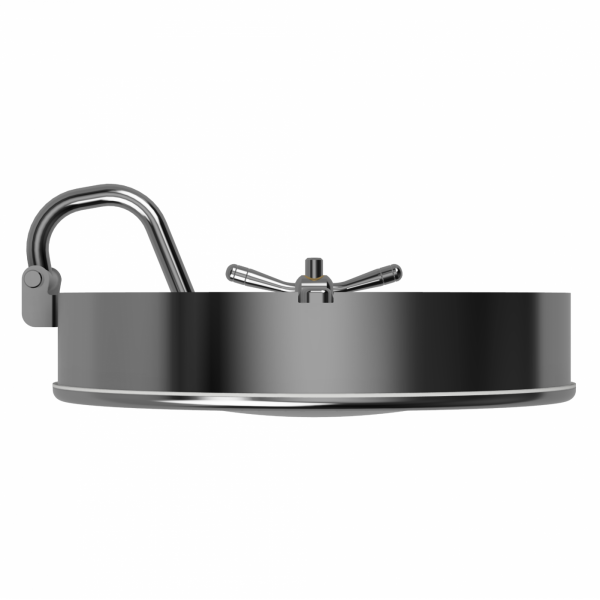

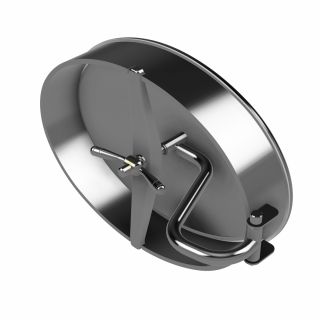

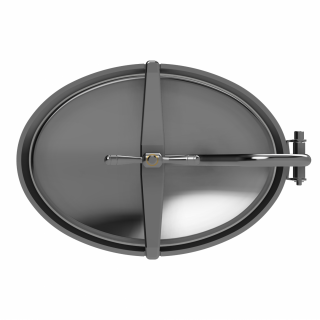

Stainless steel oval manway W3/F is a model that can be installed in the side wall of a stainless steel tank. The manway is equipped with inside-opened lid. Thanks to the special design, the hinge and supporting arm keep the cover in the open position and also enable rotation and removal of the cover to the outside.
The W3/F model is manufactured with 60 mm and 80 mm high mounting frames (flanges) as standard.
The use of the oval manway W3/F
The W3/F oval manway is generally installed in stainless steel tanks used for storing various types of liquid products, but it can also be successfully used in various process equipment.
Typically, this type of manway can be installed in stainless steel tanks used in the food, dairy, vegetable and fruit processing industry. You will also find it in industrial equipment. It is also successfully used in cosmetic, biotechnological, chemical and related industries.

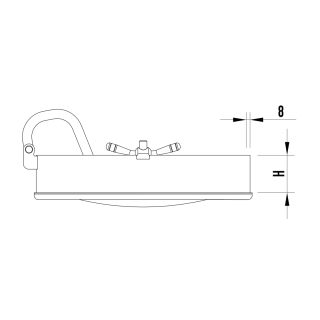

| Model | H [mm] | MAX [bar] |
|---|---|---|
| W3/F | 60 | 3.0 |
| 80 | 3.0 |
Technical parameters
| Product series | Series W |
|---|---|
| Size | M (longer manway side between 300-500 mm) |
| Shape | Oval manways |
| Type | Pressure manway |
| Frame height (in mm) | 60-80 mm |
| Frame wall thickness (in mm) | 8.0 mm |
| Opening type | Inward |
| Industry | Brewing, Chemical, Dairy, Food production, Winemaking |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 2.51 - 4.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Silicone, Viton |
| Handwheel material | INOX |
