Oval manway
P41-040 (305x440)

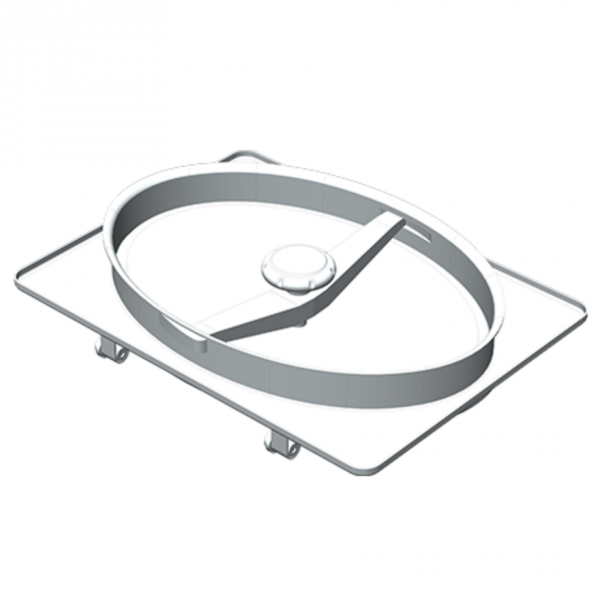

Stainless steel oval manway Boyer P41-040
Series includes: P41-040
Oval manway Boyer P41-040 is designed specifically for installation in wooden tanks and barrels for aging wine, spirits and vinegar. The manway cover is equipped with two hinges for easy opening. The cover opens inwards. Manway components are manufactured from stainless steels in grades AISI 304L and/or AISI 316L.
Oval manway P41-040 - application
Oval manway P41-040 is installed in wooden tanks and barrels. The main areas of application of this manway are:
- wineries,
- vinegar producers,
- beverage and liquor industry,
- vegetable and fruit processing.
About Boyer products
Products of the French manufacturer Boyer guarantee the highest quality of construction and durability. Attention to every detail in the production process results in extremely high resistance, comfort of use and beautiful design of the manways.
They are excellent for applications where it is necessary to use a product that meets the highest standards. For this reason, Boyer brand manways are among the most popular in Europe.

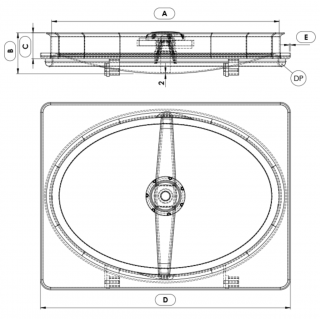

| Model | A [mm] | C [mm] | E [mm] | B [mm] | D [mm] | MAX [bar] | Weight [kg] |
|---|---|---|---|---|---|---|---|
| P41-040 | 305x444 | 50 | 2 | 82 | 363x483 | 1.0 | 6.0 |
Technical parameters
| Product series | Boyer |
|---|---|
| Size | M (longer manway side between 300-500 mm) |
| Shape | Oval manways |
| Type | Pressure manway |
| Frame height (in mm) | 50 mm |
| Frame wall thickness (in mm) | 2.0 mm |
| Opening type | Inward |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Neoprene, Silicone, Silicone (high temperature - up to 250°C), Viton, Other |
| Handwheel material | INOX, Other |
