Oval manway

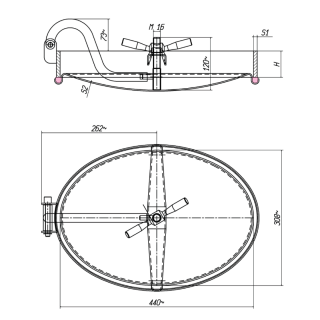

E128TS (440x308)

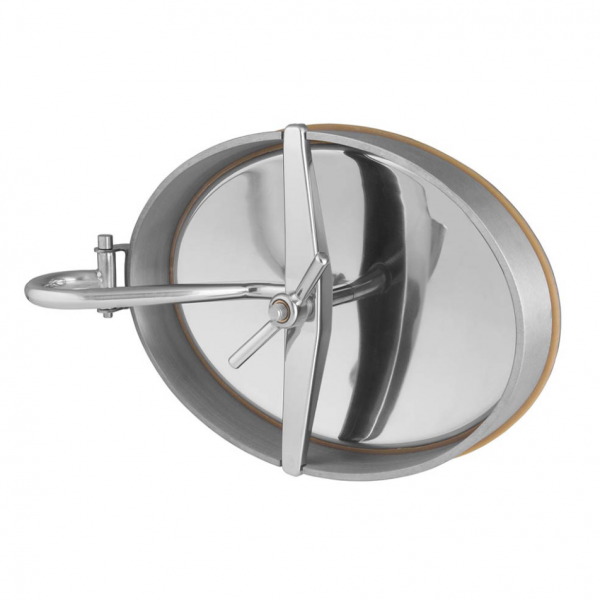

Stainless steel oval manway E128TS - characteristics
The E128TS stainless steel oval manway is a model that is installed in the side wall of the tank. What is important, the manway opens towards the inside of the tank, and thus, when the manway is closed and the tank is filled, the pressure of the liquid contributes to its sealing.
It is worth noting the special mounting of the cover on the extension, which allows it to be rotated and removed outside the tank when necessary. This is certainly an advantage that service personnel will appreciate during the cleaning process.
The relatively large width of the opening created when the manway cover is opened allows access to the inside of the tank during service work, as well as inspection of the tank.
The use of the E128TS oval manway
Elliptical manway type E128TS is used in a wide range of stainless steel tanks, which definitely makes it extremely useful in the:
- food industry,
- dairy, industry
- beverage and concentrate production,
- cosmetics industry,
- chemical and biotechnology industries.
In addition, the E128TS manway is successfully used in brewing, distilling, as well as in all types of applications requiring high hygiene and/or increased corrosion resistance.
When selecting a manhole for a specific working environment, always consider the properties of the materials and components used in its construction.
| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E128/TS | 60 | 8 | 2 | 3.0 |
| E128TS/A | 80 | 8 | 2 | 3.0 |
| E128TS/X | 60 | 6 | 2 | 3.0 |
| E128TS/X/A | 80 | 6 | 2 | 3.0 |
Technical parameters
| Product series | Series E |
|---|---|
| Size | M (longer manway side between 300-500 mm) |
| Shape | Oval manways |
| Type | Pressure manway |
| Frame height (in mm) | 60-80 mm |
| Frame wall thickness (in mm) | 6.0-8.0 mm |
| Opening type | Inward |
| Industry | Chemical, Dairy, Food production, Winemaking |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 2.51 - 4.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
| Handwheel material | INOX |
