Oval manway

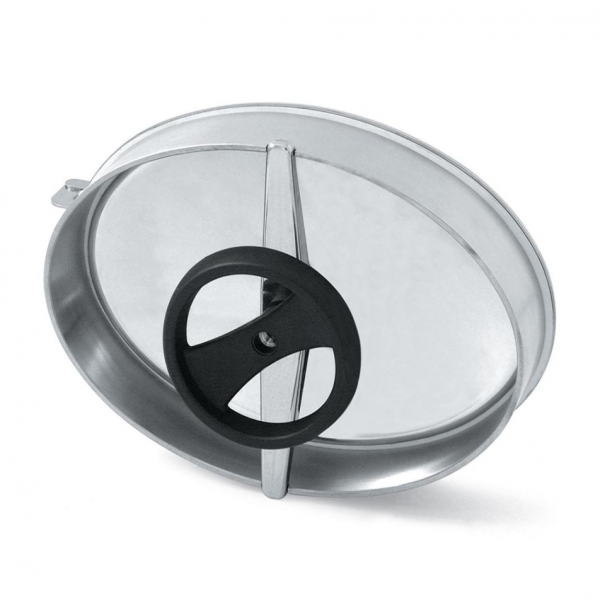

E127 (440x308)
Stainless steel oval manway E127 - characteristics and application
Stainless oval manway E127 is an inward-opening pressure construction. The model is designed for installation in the side wall of a stainless steel tank. The main application areas for this manway include:
- food industry,
- brewery,
- dairy industry,
- beverage production,
- distilling,
- cosmetics industry,
- chemical and biotechnology industries.
In addition, manway type E127 is successfully used in all types of applications requiring high hygiene and/or increased corrosion resistance. When selecting a manway, it is necessary to take into account the parameters of the materials and components used in its construction.

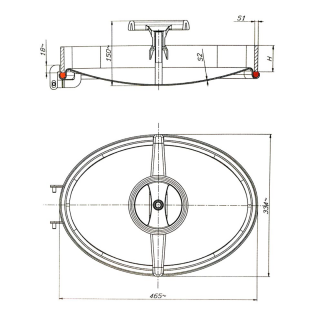

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E127 | 60 | 8 | 2 | 3.0 |
| E127/A | 80 | 8 | 2 | 3.0 |
Technical parameters
| Product series | Series E |
|---|---|
| Size | M (longer manway side between 300-500 mm) |
| Shape | Oval manways |
| Type | Pressure manway |
| Frame height (in mm) | 60 mm |
| Frame wall thickness (in mm) | 8.0 mm |
| Opening type | Inward |
| Industry | Chemical, Dairy, Food production, Winemaking |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 2.51 - 4.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
| Handwheel material | Plastic, INOX |
