Oval manway
E127/1 (444x312)

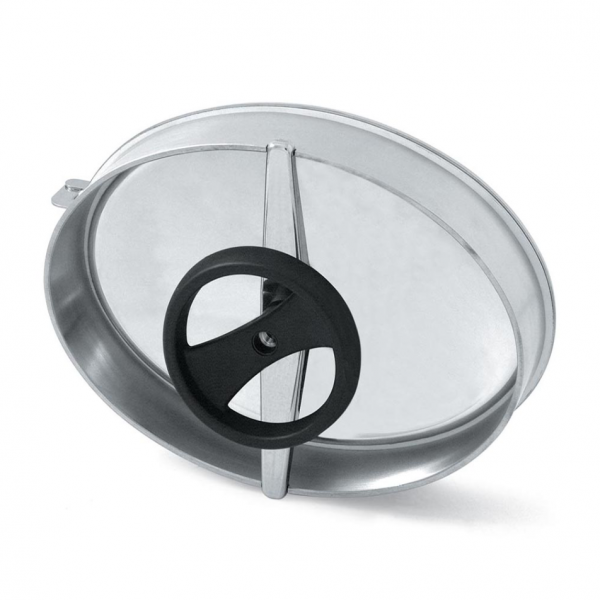

Stainless steel oval manway E127/1 - characteristics and application
Stainless steel oval manway E127/1 is equipped with a hinge, which allows the manway to be opened inside. This model is installed in the side of the tank made of stainless steel. The main areas of application for this mamanwaynhole include industry:
- food,
- dairy,
- beverage production,
- cosmetics,
- chemical and biotechnology.
Moreover, the elliptical manway type E127/1 is successfully used in brewing and distilling. There is also no obstacle to its use in all kinds of other applications requiring high hygiene and/or increased corrosion resistance.
When selecting a manway, it is essential to confirm the compatibility of the materials and components used in its construction with the factors present in the working environment.

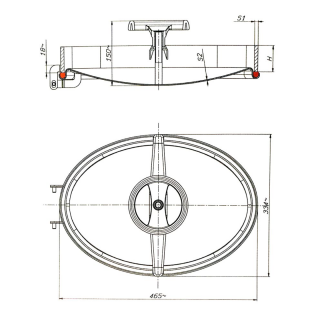

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E127/1 | 60 | 6 | 2 | 3.0 |
| E127/1/A | 80 | 6 | 2 | 3.0 |
Technical parameters
| Product series | Series E |
|---|---|
| Shape | Oval manways |
| Type | Pressure manway |
| Frame height (in mm) | 60-80 mm |
| Frame wall thickness (in mm) | 6.0 mm |
| Opening type | Inward |
| Industry | Chemical, Dairy, Food production, Winemaking |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 2.51 - 4.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
| Handwheel material | Plastic, INOX |
