Oval manway
E126 (340x450)

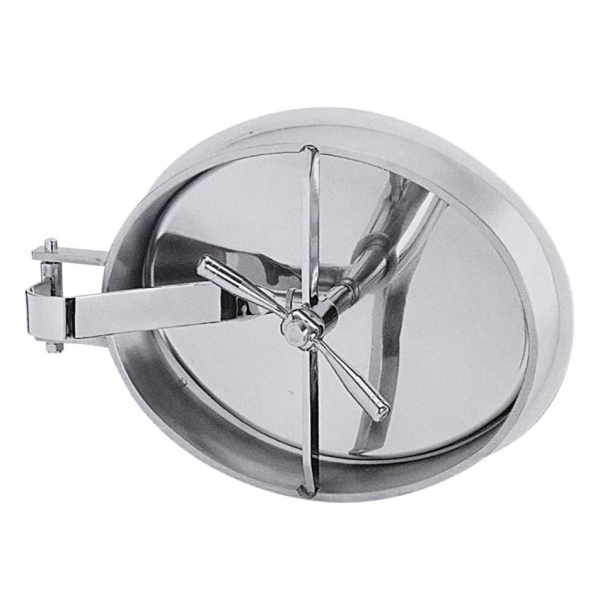

Stainless steel oval manway E126
Stainless oval manway E126 is a pressure construction that opens to the inside of a stainless steel tank. The design of the arm supporting the manway cover allows it to be removed outside the tank for cleaning.
Stainless steel oval manway E126 - application
This model is mounted in the side wall, and the main area of application for it are stainless steel tanks used in the:
- food industry,
- dairy industry,
- vegetable and fruit processing,
- beverage production,
- cosmetics industry,
- chemical and biotechnology industries.
In addition, the E126 type manway is successfully used in brewing, distilling and grease industry. In general, it is used in all types of applications requiring high hygiene and/or increased corrosion resistance.
To ensure long and trouble-free operation in a specific environment, when selecting a manway, the properties of the materials and components used in its construction should be taken into account.

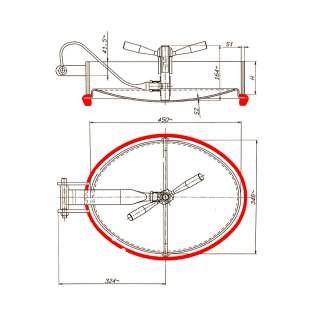

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E126 | 100 | 10 | 4 | 3.0 |
| E126/A | 150 | 10 | 4 | 3.0 |
Technical parameters
| Product series | Series E |
|---|---|
| Size | M (longer manway side between 300-500 mm) |
| Shape | Oval manways |
| Type | Pressure manway |
| Frame height (in mm) | 100-150 mm |
| Frame wall thickness (in mm) | 10.0 mm |
| Opening type | Inward |
| Industry | Chemical, Dairy, Food production, Winemaking |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 2.51 - 4.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, Silicone |
| Handwheel material | INOX |
