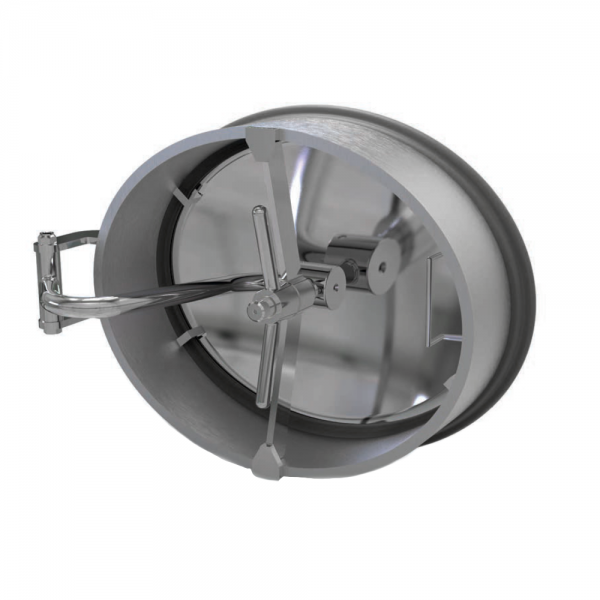

Stainless steel oval manway C49
Oval manway C49 is installed in the side wall of pressure tanks for various purposes. The cover of the manway opens to the inside of the tank with the possibility of its removal to the outside thanks to a properly designed hinge. The large width of the manway makes access to the inside of the tank comfortable, so that any inspection or service activities do not cause any problems.
As standard, this model is equipped with an EPDM gasket approved for food and alcohol contact. The gasket is placed on the edge of the cover, and its profile is designed to ensure the best possible seal of the manway. The mounting frame of the C49 oval manway, depending on the version, can have two lengths - 100 mm or 120 mm.
Oval manways C49 - application
Oval manway C49 is installed in pressure tanks for various purposes. The main areas of application of this manway model are:
- food and dairy industry,
- beverage and alcohol production industry,
- vegetable and fruit processing.
Due to its universal design and wide range of available sealing materials, this manway can also be used in the areas of:
- biotechnology,
- chemical industry,
- cosmetic industry and similar areas.
| Model | A [mm] |
B [mm] |
C [mm] |
DxE [mm] |
MAX [bar] |
|---|---|---|---|---|---|
| C49/A | 100 | 12 | 6 | 374x464 | 9.0 |
| C49/B | 120 | 12 | 6 | 374x464 | 9.0 |

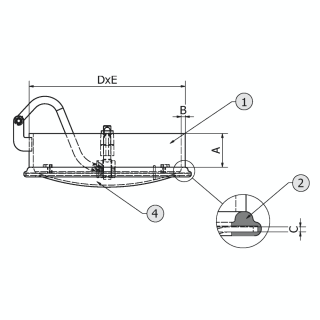

| Symbol | Element |
|---|---|
| 1 | frame |
| 2 | gasket |
| 4 | cover |
Technical parameters
| Product series | Series C |
|---|---|
| Size | M (longer manway side between 300-500 mm) |
| Shape | Oval manways |
| Type | Pressure manway |
| Frame height (in mm) | 100-120 mm |
| Frame wall thickness (in mm) | 12.0 mm |
| Opening type | Inward |
| Mounting method | in the tank side wall (side manways) |
| Pressure | above 8.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | yes |
| Steel grade | AISI 304/304L |
| Gasket material | EPDM, NBR, Neoprene, Silicone, Viton |
| Handwheel material | INOX |
