Oval manway
A324IG (550x650)

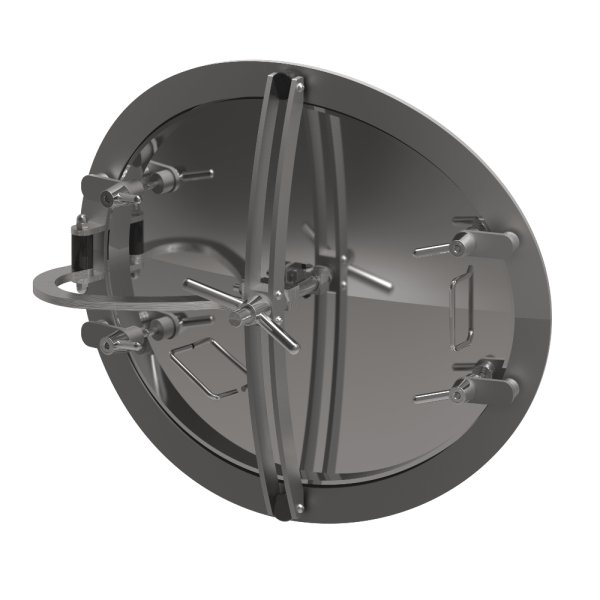

Oval manway of large size A324IG
Oval manway A324IG, is a model with exceptionally large dimensions (550x650 mm) and a unique construction, optimized to achieve a hygienic environment in the tank. It is built into the side wall of stainless steel pressure tanks designed for liquid or bulk food products. The cover opens to the inside of the tank.
Four additional handwheels are installed around the rim of the manway to guarantee the tightness of the structure and a pressure resistance of 3.5 bar.
During production, the manway is bent to a specific diameter of the tank, so it is produced only on individual request. This model is suitable for tanks with a diameter of Ø1400 mm and above.
Hygienic manway with special design. Appropriate curvature, the absence of manhole elements sticking out inside the tank, and hand-finishing of manhole elements, eliminate the possibility of microbiological contamination of the product.
This model is made from AISI 304/304L stainless steel as standard, and optionally from AISI 316L grade steel. A wide range of elastomers used in the production of gaskets, allows the manway to be applied to a broad spectrum of fluids and liquids.
The use of stainless steel oval manway A324IG
The main areas of application are:
- food storage tanks,
- applications requiring hygiene,
- beverage, wine and alcohol production,
- cosmetics and biotechnology industries.
The A324IG elliptical manway is also used successfully in other applications, provided the operating environment is suitable for the properties of the materials used in its construction.

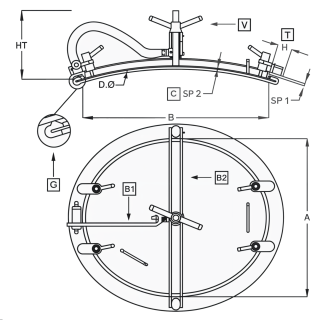

| Model | A [mm] | B [mm] | HxSP1 [mm] | HT [mm] | SP2 [mm] | MAX [bar] |
Weight [kg] |
|---|---|---|---|---|---|---|---|
| A324IG | 550 | 650 |
50x10 Ø ≥ 1400 mm* |
195 | 5.0 | 3.5 | 34.0 |
*Tank diameter.
| Symbol | Element |
|---|---|
| V | handwheel |
| C | cover |
| G | gasket |
| T | frame |
| B1 | cross arm |
| B2 | vertical arm |
Technical parameters
| Product series | Series A |
|---|---|
| Size | L (longer manway side between 501-700 mm) |
| Shape | Oval manways |
| Type | Pressure manway |
| Frame height (in mm) | 50 mm |
| Frame wall thickness (in mm) | 10.0 mm |
| Opening type | Inward |
| Industry | Brewing, Chemical, Dairy, Food production, Pharmaceutical, Winemaking |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 2.51 - 4.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Neoprene, Silicone, Viton |
| Handwheel material | INOX |
