Oval manway

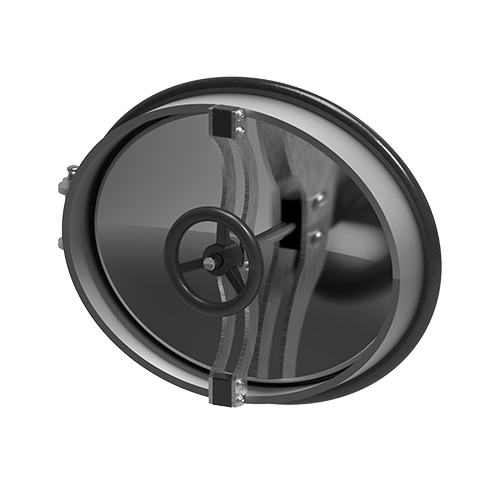

A317E (345x445)

  • Pressure up to 5.0 bar
  • Mounting in the side wall of the tank
  • Opening to the inside
  • Internal hinge
  • Gasket mounted in the cover

Oval manway A317E

Oval manway A317E is a standard design for installation in the side wall of the tank. An internal hinge allows the cover to be opened to the inside of the tank. A large plastic handwheel (standard) or optional INOX M16 butterfly handwheel, make it easier to smoothly tighten the cover and seal the entire assembly.



This model is made from AISI 304/304L stainless steel as standard, and optionally from AISI 316L grade steel. A wide range of elastomers, used for the production of gaskets, allows the manway to operate in contact with various liquids.

The use of stainless steel oval manway A317E

The main areas of application are:

  • food industry,
  • beverage and alcohol production,
  • chemical and biotechnology industries.
Model A [mm] B [mm] HxSP1 [mm] HT [mm]* SP2 [mm] MAX [bar]*

Weight

[kg]
A317E 345 445

60x10**

80x10

100x10

130x10

173 4.0 5.0 15.5

*For the standard version (HxSP1 = 60x10 mm).

**Standard version.

Symbol Element
V handwheel
C cover
G gasket
T frame
B arm



Technical parameters

Product seriesSeries A
SizeM (longer manway side between 300-500 mm)
ShapeOval manways
TypePressure manway
Frame height (in mm)60-130 mm
Frame wall thickness (in mm)10.0 mm
Opening typeInward
Mounting methodin the tank side wall (side manways)
Pressure4.51 - 6.5 bar
Vacuum pressurenot applicable
PED certificateno
Steel gradeAISI 304/304L, AISI 316/316L
Gasket materialEPDM, NBR, Silicone, Viton
Handwheel materialPlastic, INOX
