Oval manway

A309 (345x445)

  • Pressure up to 3.0 bar
  • Mounting in the side wall of the tank
  • For tanks with a diameter of Ø900 mm or more
  • Structure bent to the diameter of the tank
  • Opening to the inside
  • External hinge
  • Gasket mounted in the cover

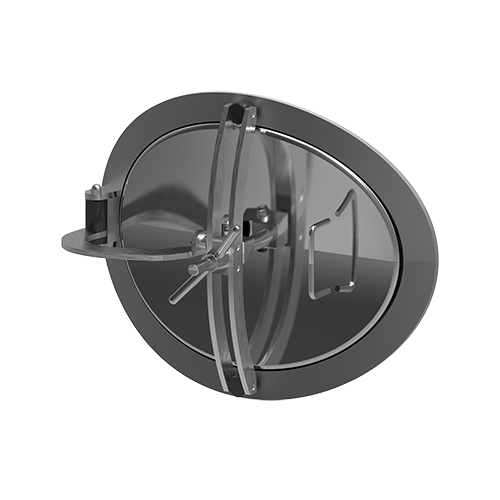

Oval manway A309

The A309 oval manway is built into the side wall of a stainless steel pressure tank and opens to the inside. During production, the manway is bent to the specific diameter of the tank, which is why it is manufactured only on request. This model is suitable for tanks with a diameter of Ø900 mm and larger.



Manway A309 is made from AISI 304/304L stainless steel as standard, and optionally from AISI 316L grade steel. A wide range of elastomers used for gaskets, allows the manway to be applied for a broad spectrum of working media (fluids, liquids).

The use of stainless steel oval manway A309

The main areas of application are:

  • brewery tanks,
  • fermentation industry,
  • beverage, wine and spirits production,
  • chemical and biotechnology industries.

The A308/A308R elliptical manways are also used successfully in other applications, provided that the operating environment is suitable in terms of the properties of the materials used in their construction.

Model A [mm] B [mm] HxSP1 [mm] HT [mm] SP2 [mm] MAX [bar]

Weight

[kg]
A309 345 445

40x8

Ø ≥ 900 mm*

170 2.5 3.0 11.0

*Tank diameter.

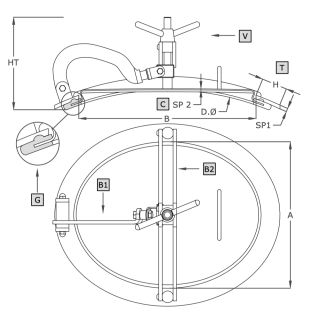

Symbol Element
V handwheel
C cover
G gasket
T frame
B1

cross arm

B2

vertical arm



Technical parameters

Product seriesSeries A
SizeM (longer manway side between 300-500 mm)
ShapeOval manways
TypePressure manway
Frame height (in mm)40 mm
Frame wall thickness (in mm)8.0 mm
Opening typeInward
IndustryBrewing, Chemical, Dairy, Food production, Winemaking
Mounting methodin the tank side wall (side manways)
Pressure2.51 - 4.5 bar
Vacuum pressurenot applicable
PED certificateno
Steel gradeAISI 304/304L, AISI 316/316L
Gasket materialEPDM, NBR, Neoprene, Silicone, Viton
Handwheel materialPlastic, INOX
