Special-purpose manway
E141BL (424x316)

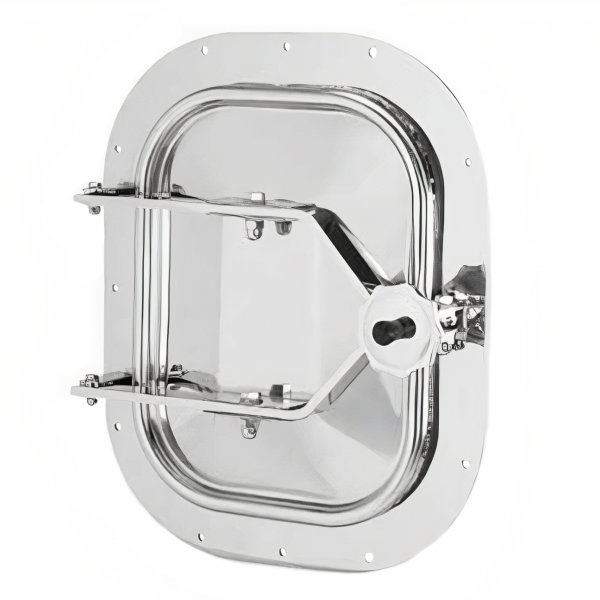

Stainless steel rectangular manway for wooden tanks (barrels) E141BL
Rectangular manway E141BL is installed in the side wall of a wooden tank (barrel). The cover of the manway, is connected to the flange with two hinges to ensure the durability of the structure. The cover, which opens outward, is closed with a single handwheel.
A characteristic feature of the manway is its flange with holes that allow the manway to be attached to the surface of the barrel.
The primary area in which the E141BL rectangular manway is used is wooden tanks used in wine production.
The use of rectangular manway E141BL
This model is structurally adapted for installation in wood. Therefore, most often the E141BL rectangular barrel manway is installed in large barrels intended for aging wine, whiskey or brandy.
It is also used with good effect in barrels intended for aging beer and storing other products of the industry:
- wine,
- spirits,
- food.
Through the appropriate selection of gasket materials, the E141BL rectangular barrel manway can be adapted to many different products/media.

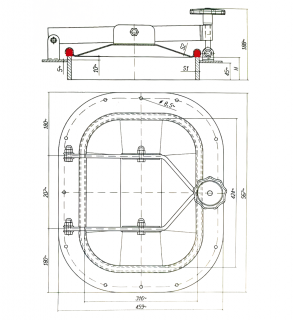

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E141BL | 60 | 8 | 2 | 0.5 |
Technical parameters
| Product series | Series E |
|---|---|
| Shape | Rectangular manways |
| Type | Non-pressure manway |
| Frame height (in mm) | 60 mm |
| Frame wall thickness (in mm) | 8.0 mm |
| Opening type | Outward |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Silicone, Viton |
| Handwheel material | INOX |
